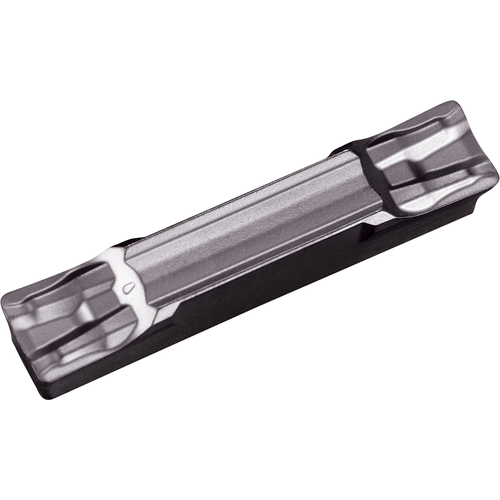

GDFM 4020N040GH PR1225 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 4 mm CW × 25 mm Max Depth × 4.5 mm Thickness ; Carbide ; PR1225 ; MEGACOAT ; Series KGD

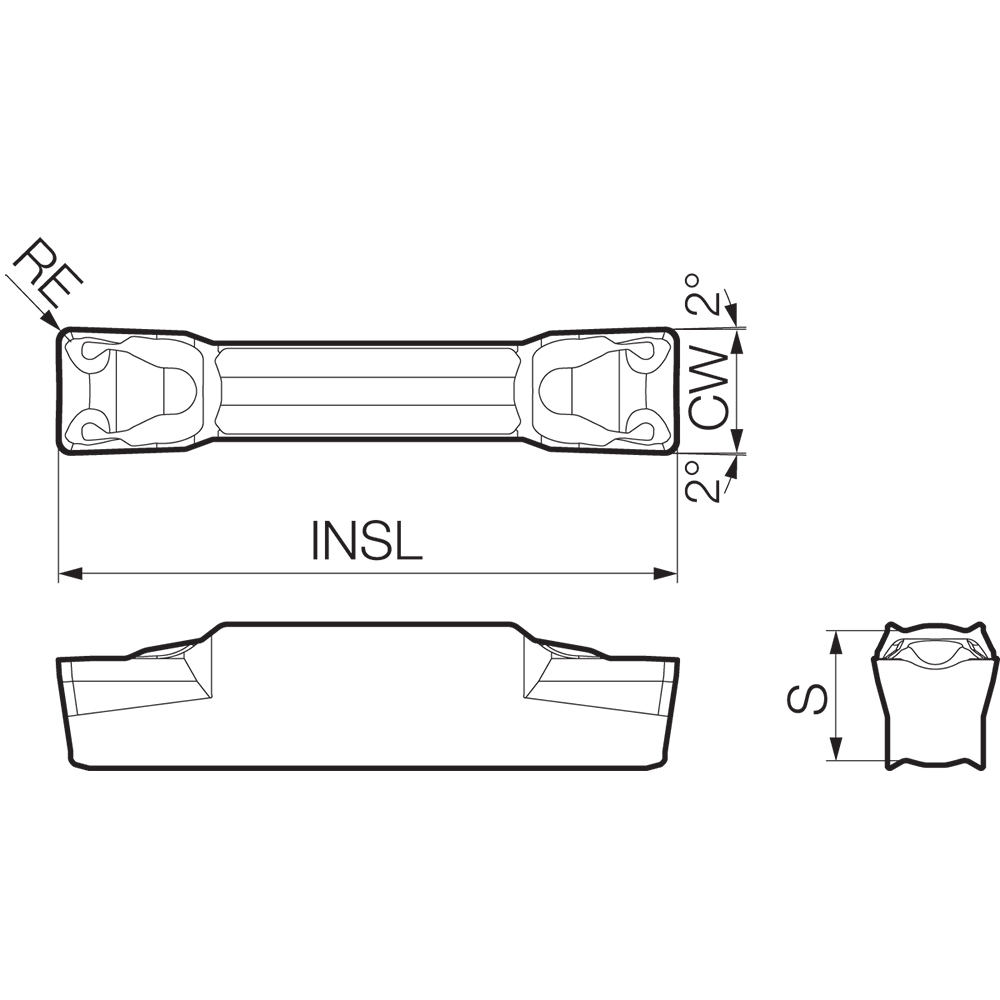

| Cutting Width (CW) | 4 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 25 mm | Chip Breaker Type | GH |
| Insert Thickness (S) | 4.5 mm | Insert Style | GDFM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Coating | MEGACOAT | Mounting Style | Clamp |
| Grade | PR1225 | Series/List # | KGD |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | Face Grooving | High Feed | Traversing | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.107
