GMM 2520RTMR6D PR1115 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 2.5 mm CW × 17 mm Max Depth × 4.3 mm Thickness ; Carbide ; PR1115 ; TiAlN ; Series KGM

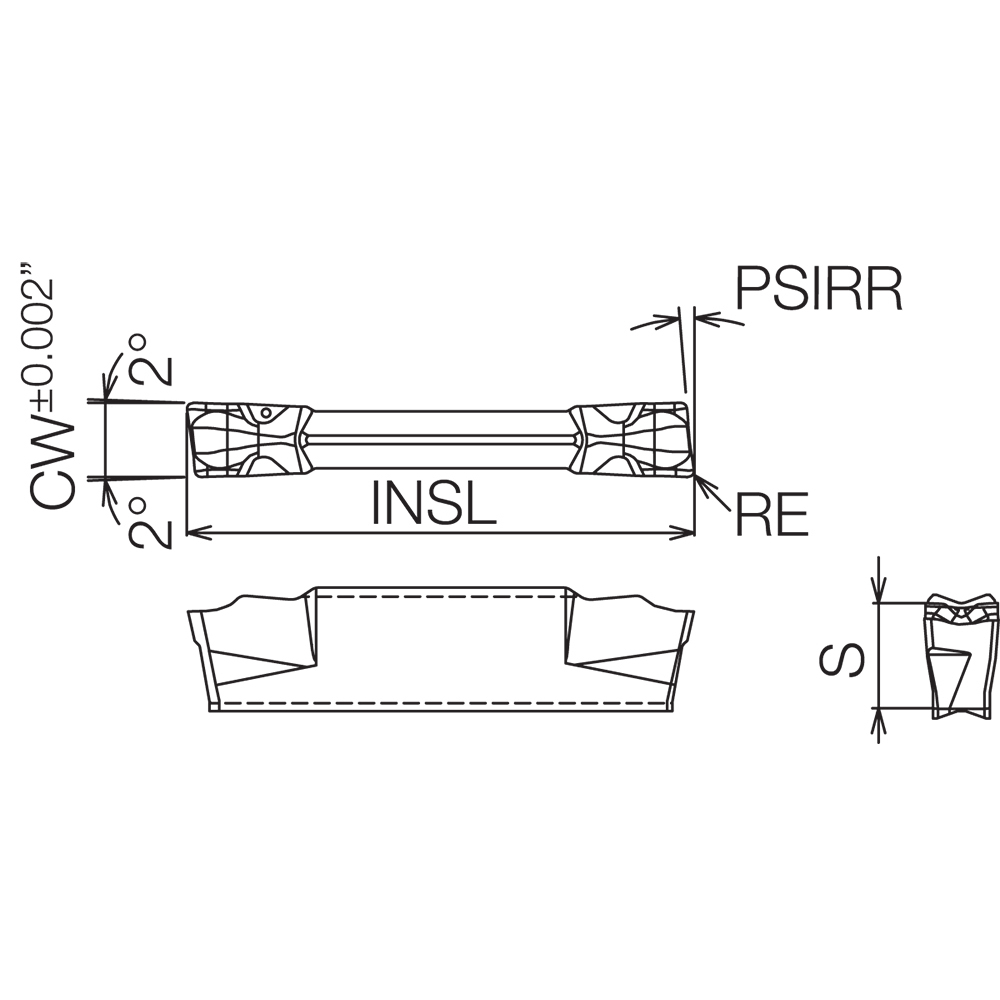

| Cutting Width (CW) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.2 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 17 mm | Chip Breaker Type | TMR |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Coating | TiAlN | Mounting Style | Clamp |
| Grade | PR1115 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | Cut-Off | External Deep Grooving | External Grooving | Measurement Type | Metric |
| Applicable Material | | Steel | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.099
