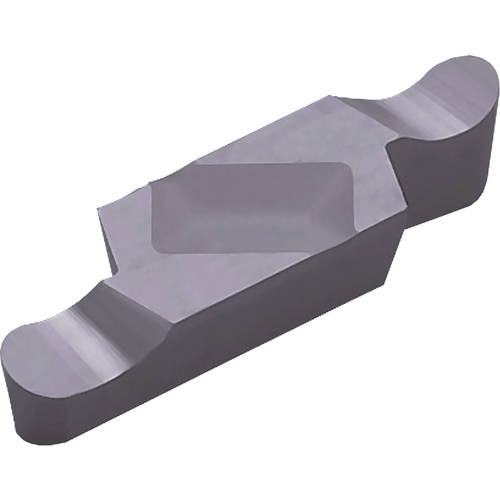

GVF R300150AR PR1225 Grade PVD Carbide, Indexable Grooving Insert

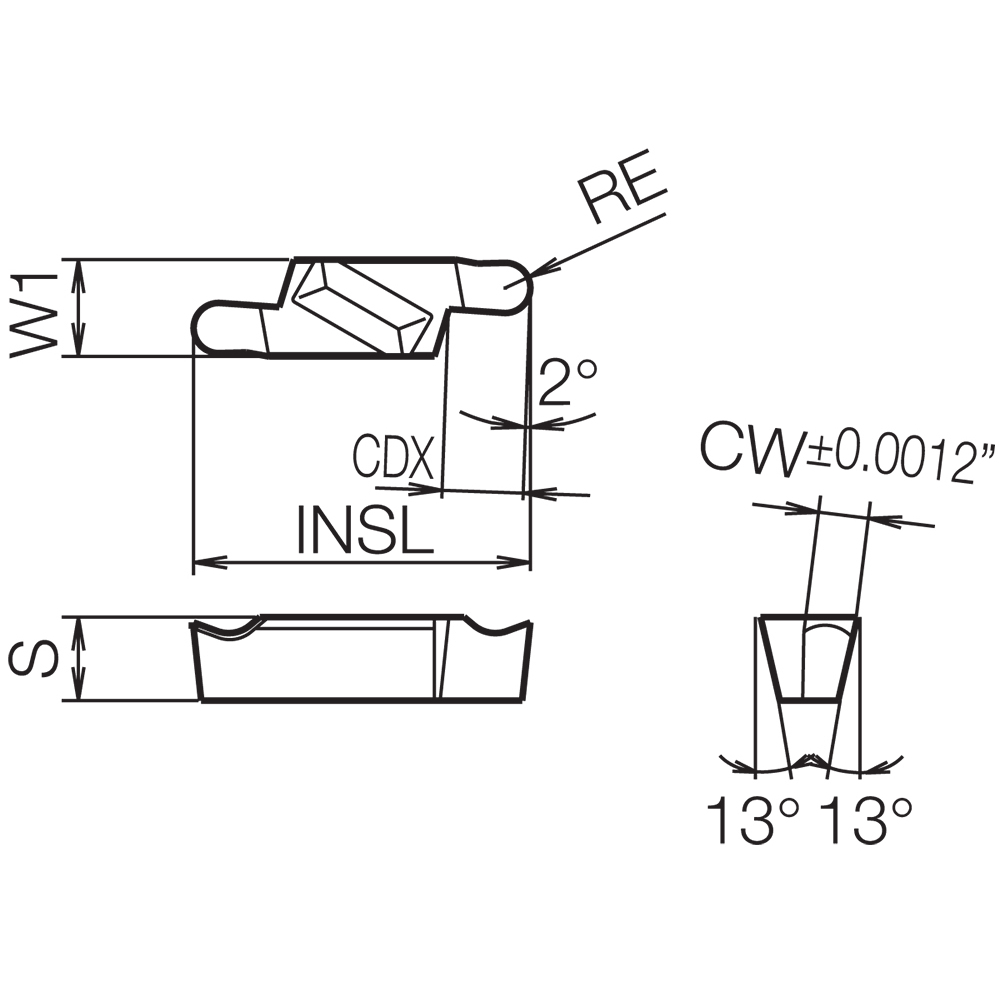

Grooving Insert; 3 mm CW × 2.3 mm Max Depth × 4.5 mm Thickness ; Carbide ; PR1225 ; MEGACOAT ; Series GFV
| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1.5 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 2.3 mm | Chip Breaker Type | AR |
| Insert Thickness (S) | 4.5 mm | Insert Style | GVF |
| Insert Length (INSL) | 12 mm | Number of Teeth | 2 |
| Coating | MEGACOAT | Mounting Style | Clamp |
| Grade | PR1225 | Series/List # | GFV |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | Face Grooving | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.099
