GBF 32L080005 PR1215 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 0.8 mm CW × 2 mm Max Depth × 3.18 mm Thickness × 9.525 mm IC ; Carbide ; PR1215 ; MEGACOAT ; Series GBF

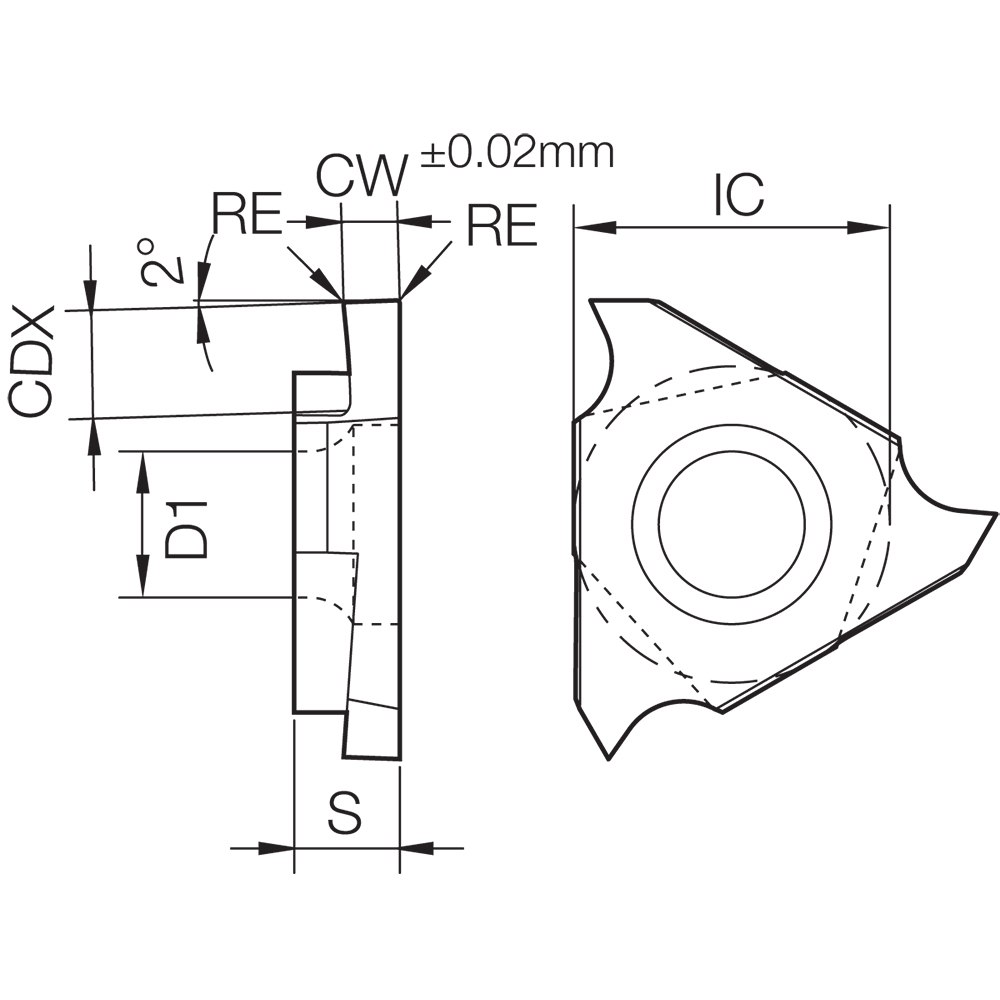

| Cutting Width (CW) | 0.8 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.05 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 2 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3.18 mm | Insert Style | GBF |
| Inscribed Circle Diameter (IC) | 9.525 mm | Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 4.4 mm | Mounting Style | Screw |
| Coating | MEGACOAT | Series/List # | GBF |
| Grade | PR1215 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | | Ext. Grooving | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.096
