GBA 43L350030 PR1215 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 3.5 mm CW × 5 mm Max Depth × 4.76 mm Thickness × 12.7 mm IC ; Carbide ; PR1215 ; MEGACOAT ; Series GBA

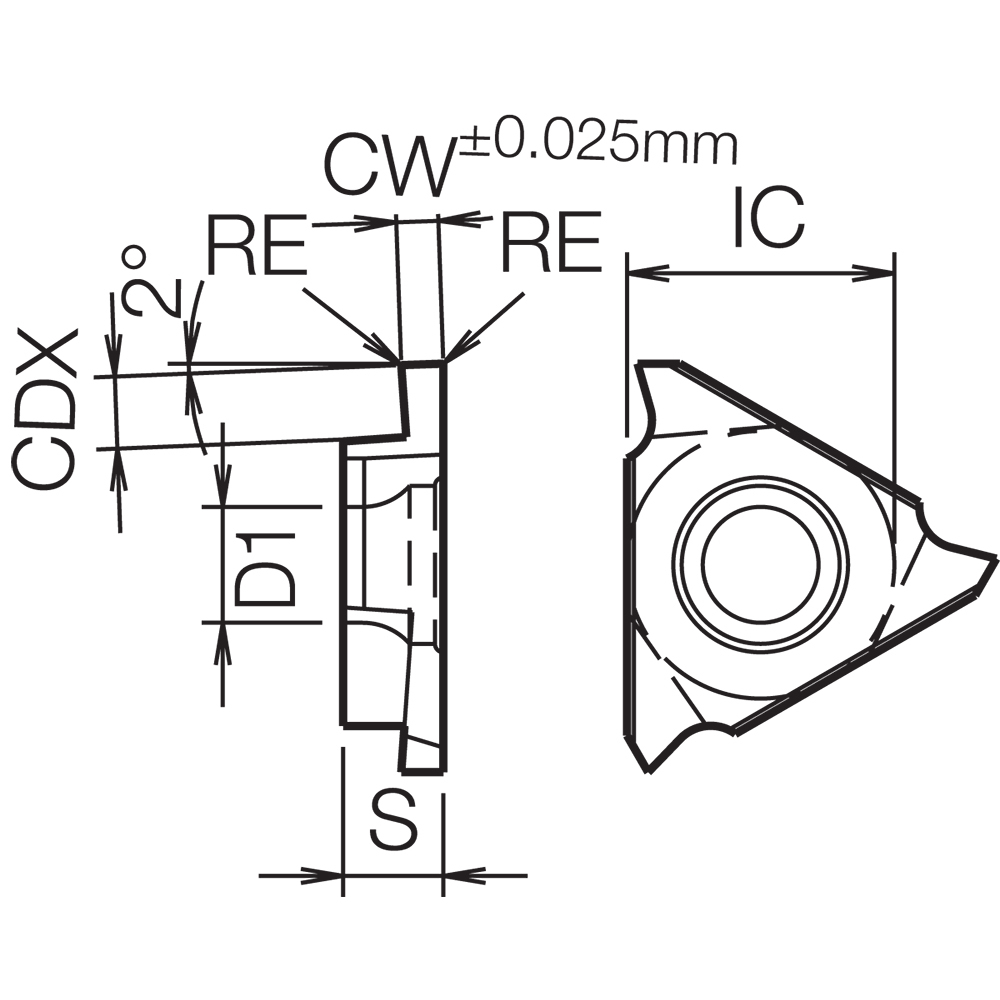

| Cutting Width (CW) | 3.5 mm | Application | | Ext. Grooving | |
| Corner Radius (RE) | 0.3 mm | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 5 mm | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 4.76 mm | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Insert Style | GBA |
| Fixing Hole Diameter (D1) | 5.5 mm | Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive | Mounting Style | Screw | Clamp |
| Coating | MEGACOAT | Series/List # | GBA |
| Grade | PR1215 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.258
