GBA 43L250010 KPD001 Grade PCD, Indexable Grooving Insert
Grooving Insert; 2.5 mm CW × 4 mm Max Depth × 4.76 mm Thickness × 12.7 mm IC ; PCD ; KPD001 ; Series GBA

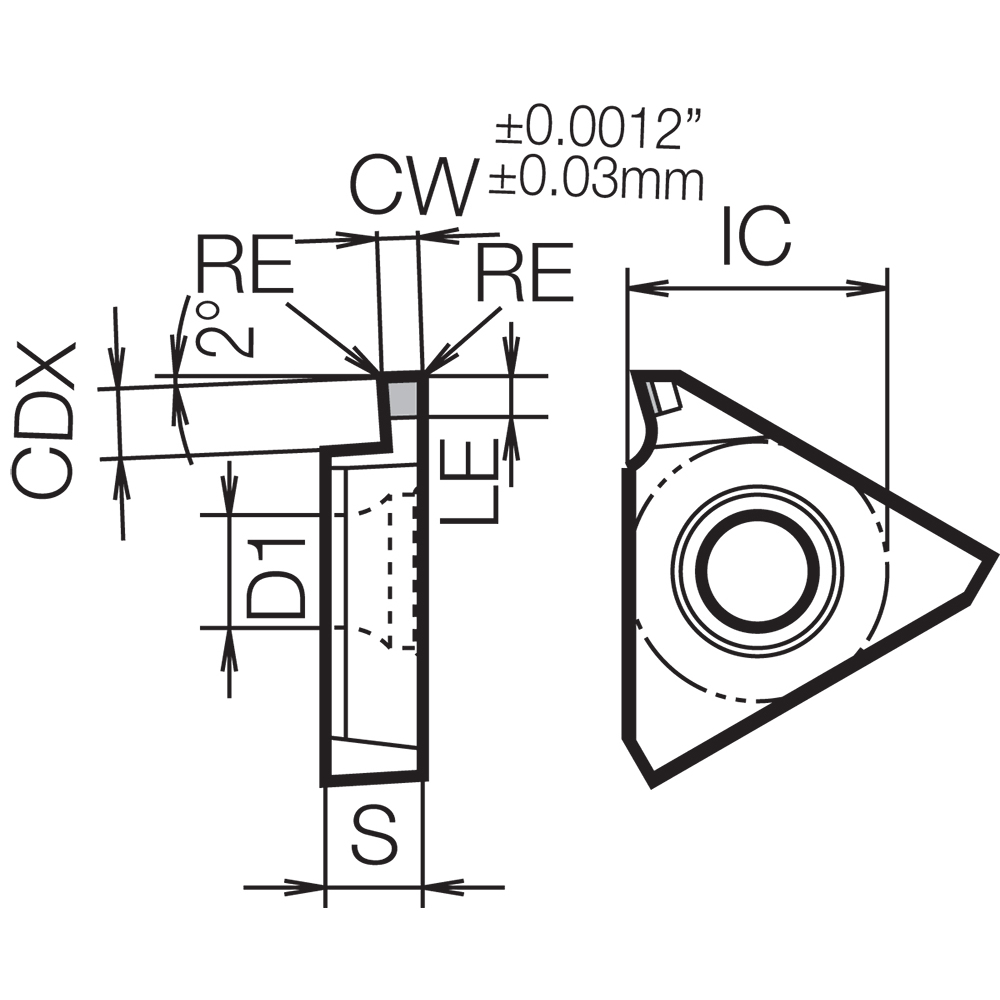

| Cutting Width (CW) | 2.5 mm | Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 4 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 4.76 mm | Insert Style | GBA |
| Inscribed Circle Diameter (IC) | 12.7 mm | Number of Teeth | 1 |
| Fixing Hole Diameter (D1) | 5.5 mm | Mounting Style | Screw | Clamp |
| Insert Rake Angle (GAN) | Positive | Series/List # | GBA |
| Grade | KPD001 | Coating Process | Uncoated |
| Cutting Edge Material | PCD | Measurement Type | Metric |
| Application | External Grooving | Internal Grooving | Cutting Edge Length (L) | 1.9 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.044
