TKF 12R200AS KPD001 Grade PCD, Indexable Grooving Insert
Grooving Insert; 2 mm CW × 5 mm Max Depth × 8.7 mm Thickness ; PCD ; KPD001 ; Series KTKF

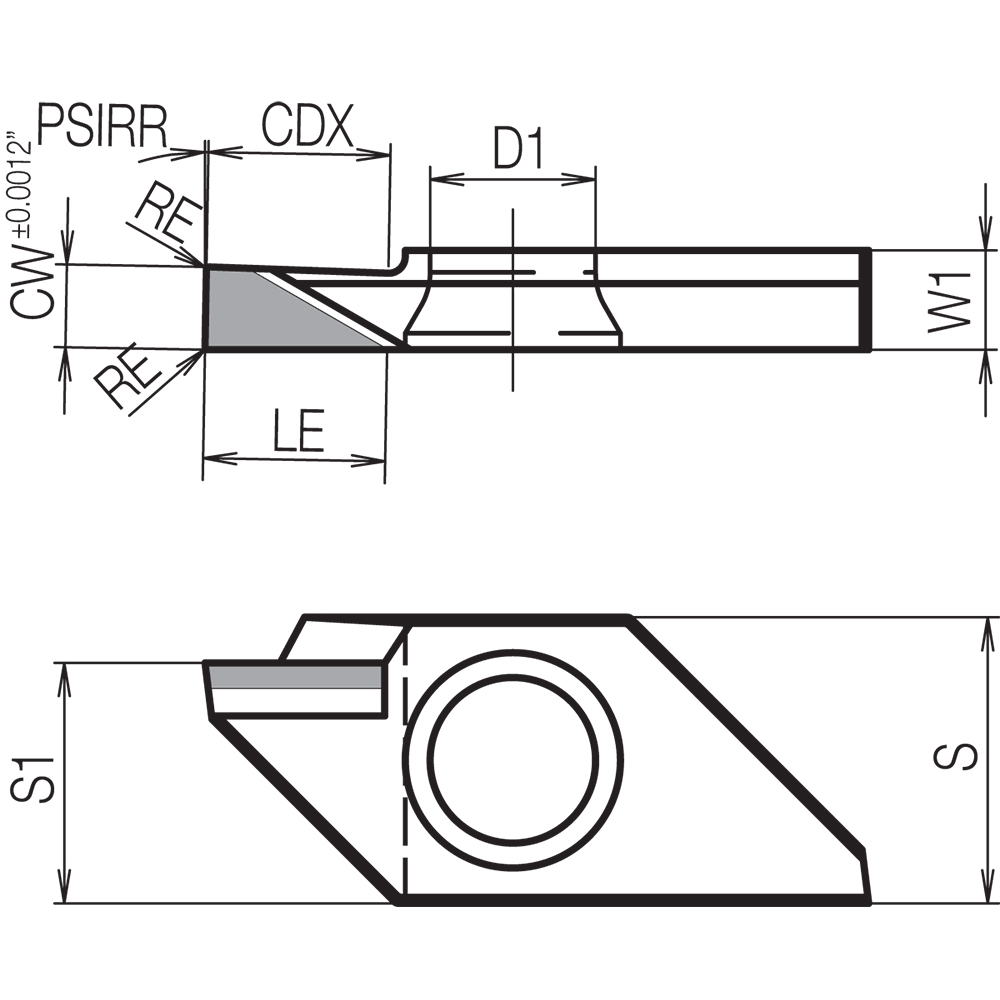

| Cutting Width (CW) | 2 mm | Number of Cutting Edges | 1 |
| Corner Radius (RE) | 0.1 mm | Chip Breaker Type | AS |
| Cutting Depth Maximum (CDX) | 5 mm | Insert Style | TKF |
| Insert Thickness (S) | 8.7 mm | Number of Teeth | 1 |
| Fixing Hole Diameter (D1) | 5 mm | Mounting Style | Screw |
| Grade | KPD001 | Series/List # | KTKF |
| Cutting Edge Material | PCD | Coating Process | Uncoated |
| Application | Small Parts Machining | Traversing | Measurement Type | Metric |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Cutting Edge Length (L) | 5.3 mm |
| Cutting Direction (HAND) | Right Hand | Insert Width (W1) | 3 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.029
