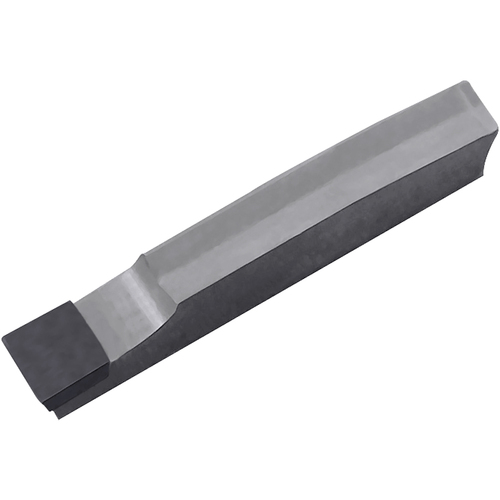

GMN 5 KPD010 Grade PCD, Indexable Grooving Insert
Grooving Insert; 5 mm CW × 25 mm Max Depth × 4.3 mm Thickness ; PCD ; KPD010 ; Series KGM

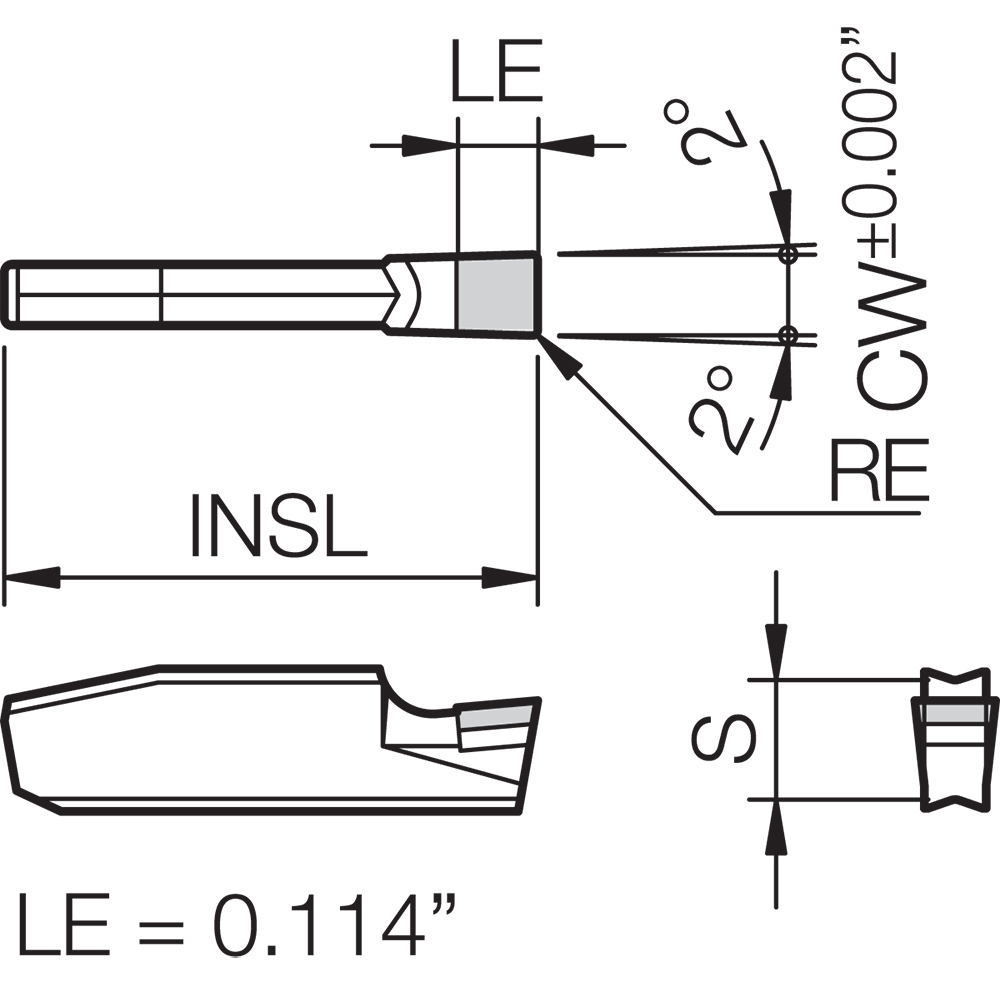

| Cutting Width (CW) | 5 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 25 mm | Insert Style | GMN |
| Insert Thickness (S) | 4.3 mm | Number of Teeth | 1 |
| Insert Length (INSL) | 20 mm | Mounting Style | Clamp |
| Grade | KPD010 | Series/List # | KGM |
| Cutting Edge Material | PCD | Coating Process | Uncoated |
| Application | External Deep Grooving | External Grooving | Measurement Type | Metric |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Cutting Edge Length (L) | 2.9 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.033
