GVF L250020B KPD010 Grade PCD, Indexable Grooving Insert

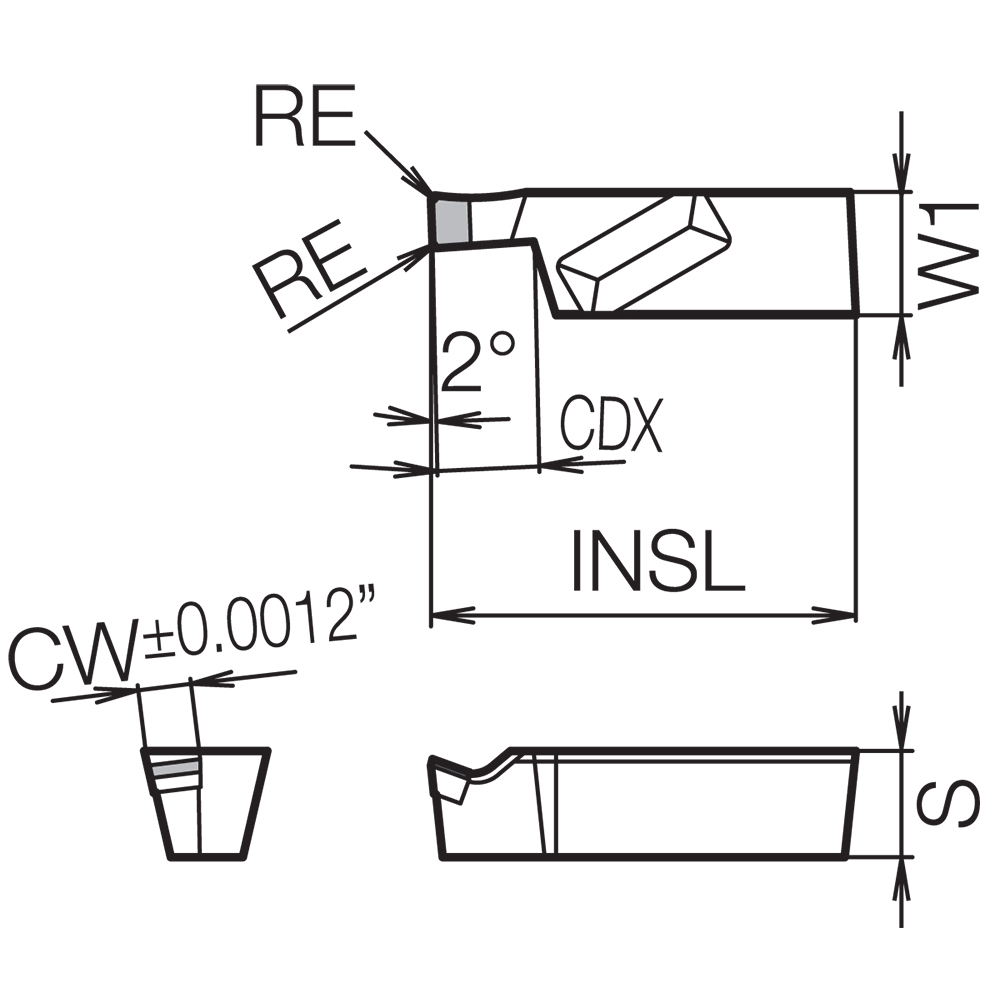

Grooving Insert; 2.5 mm CW × 3.2 mm Max Depth × 5.5 mm Thickness ; PCD ; KPD010 ; Series GFV
| Cutting Width (CW) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.2 mm | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 3.2 mm | Chip Breaker Type | B |
| Insert Thickness (S) | 5.5 mm | Insert Style | GVF |
| Insert Length (INSL) | 15 mm | Number of Teeth | 1 |
| Grade | KPD010 | Mounting Style | Clamp |
| Cutting Edge Material | PCD | Series/List # | GFV |
| Application | Face Grooving | Internal Grooving | Coating Process | Uncoated |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.032
