TNMC 43NGR125 TN60 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; TNMC 43NGR125 CERMET TN60 0.1252″ CW × 0.2339″ Max Depth × 3/16″ Thickness × 1/2″ IC ; Cermet ; TiCN+NbC

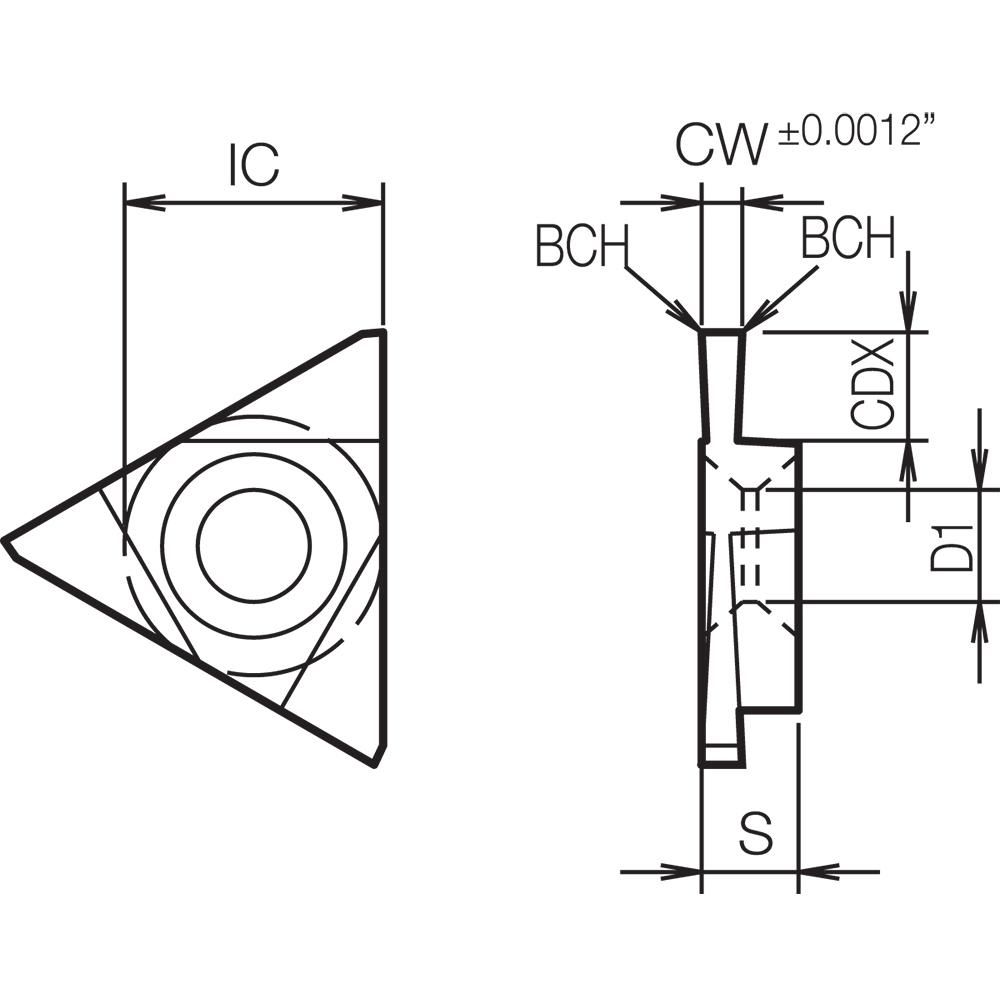

| Cutting Width (CW) | 0.1252″ | Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.004″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.2339″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | NG |
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | TNMC |
| Fixing Hole Diameter (D1) | 0.2032″ | Number of Teeth | 3 |
| Coating | TiCN/NbC | Mounting Style | Screw |
| Grade | TN60 | Series/List # | STVP |
| Cutting Edge Material | Cermet | Coating Process | Uncoated |
| Application | | Ext. Grooving | | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.099
