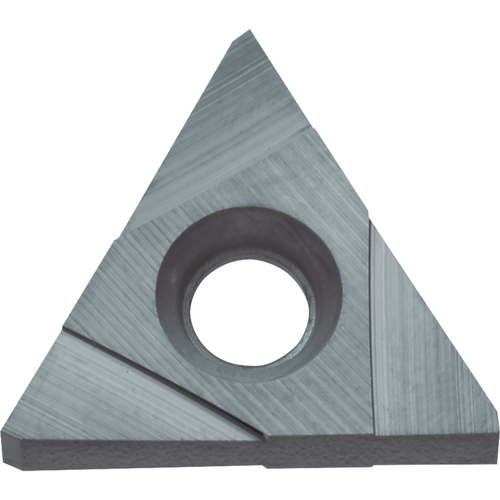

TNMC 32NGR094 TN60 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; 0.0941″ CW × 0.1563″ Max Depth × 1/8″ Thickness × 3/8″ IC ; Cermet ; TN60 ; | TiCN | NbC | ; Series STVP

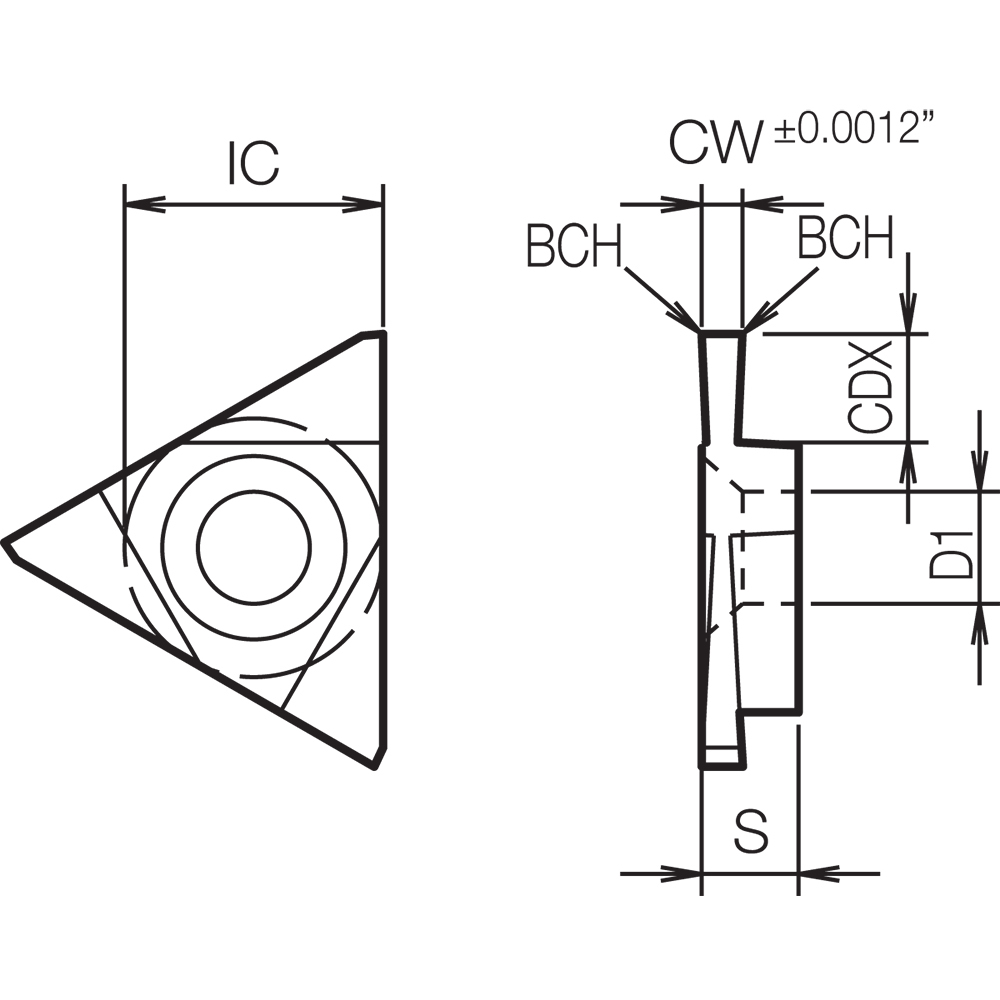

| Cutting Width (CW) | 0.0941″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.004″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.1563″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | NG |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | TNMC |
| Fixing Hole Diameter (D1) | 0.1496″ | Number of Teeth | 3 |
| Coating | | TiCN | NbC | | Mounting Style | Screw |
| Grade | TN60 | Series/List # | STVP |
| Cutting Edge Material | Cermet | Coating Process | Uncoated |
| Application | | Ext. Grooving | | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.099
