GBA 43L031R PR1215 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; GBA43L031R PVD CBD PR1215 0.0618″ CW × 0.1378″ Max Depth × 3/16″ Thickness × 1/2″ IC ; Carbide ; MEGACOAT

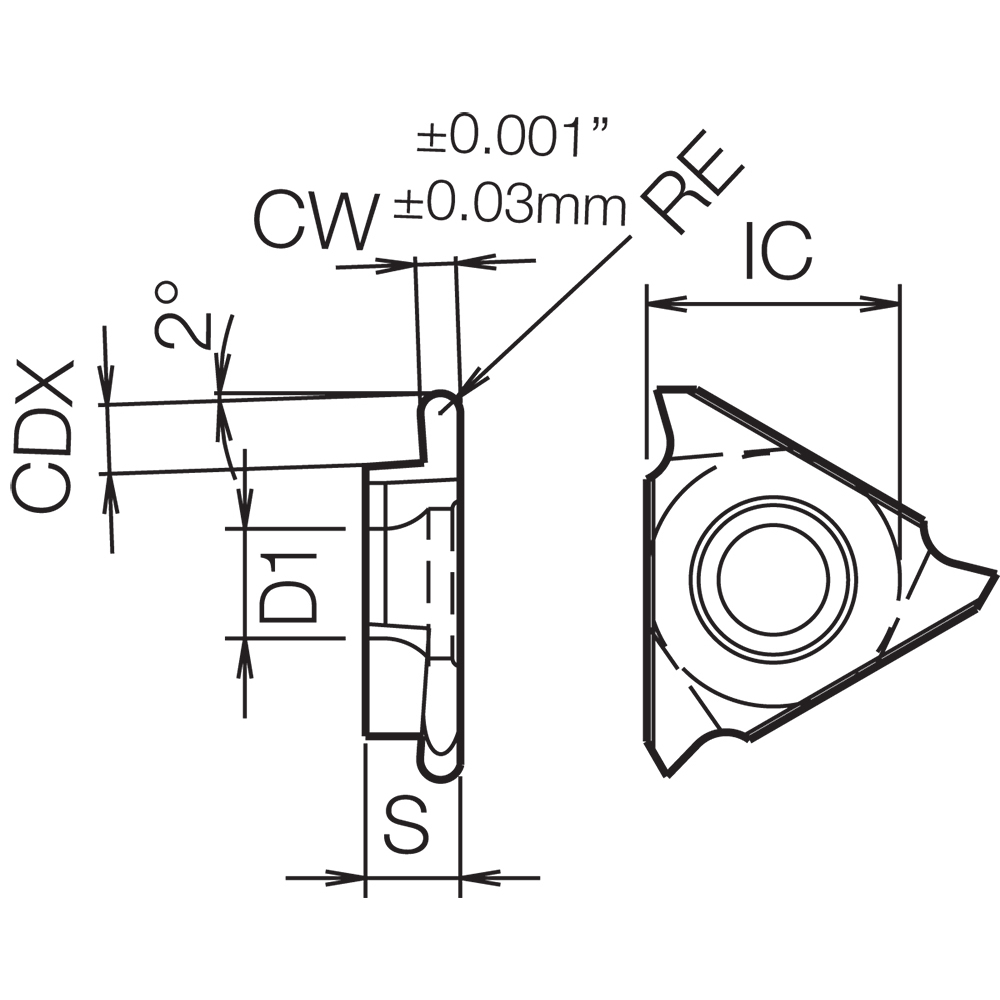

| Cutting Width (CW) | 0.0618″ | Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.1378″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | GBA |
| Fixing Hole Diameter (D1) | 0.2165″ | Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive | Mounting Style | Screw | Clamp |
| Coating | MEGACOAT | Series/List # | GBA |
| Grade | PR1215 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Ext. Grooving | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.223
