GBA 43L031N PV7040 Grade PVD Cermet, Indexable Grooving Insert
Grooving Insert; GBA43L031N PVD CERM PV7040 0.0311″ CW × 0.0787″ Max Depth × 3/16″ Thickness × 1/2″ IC ; Cermet ; MEGACOAT

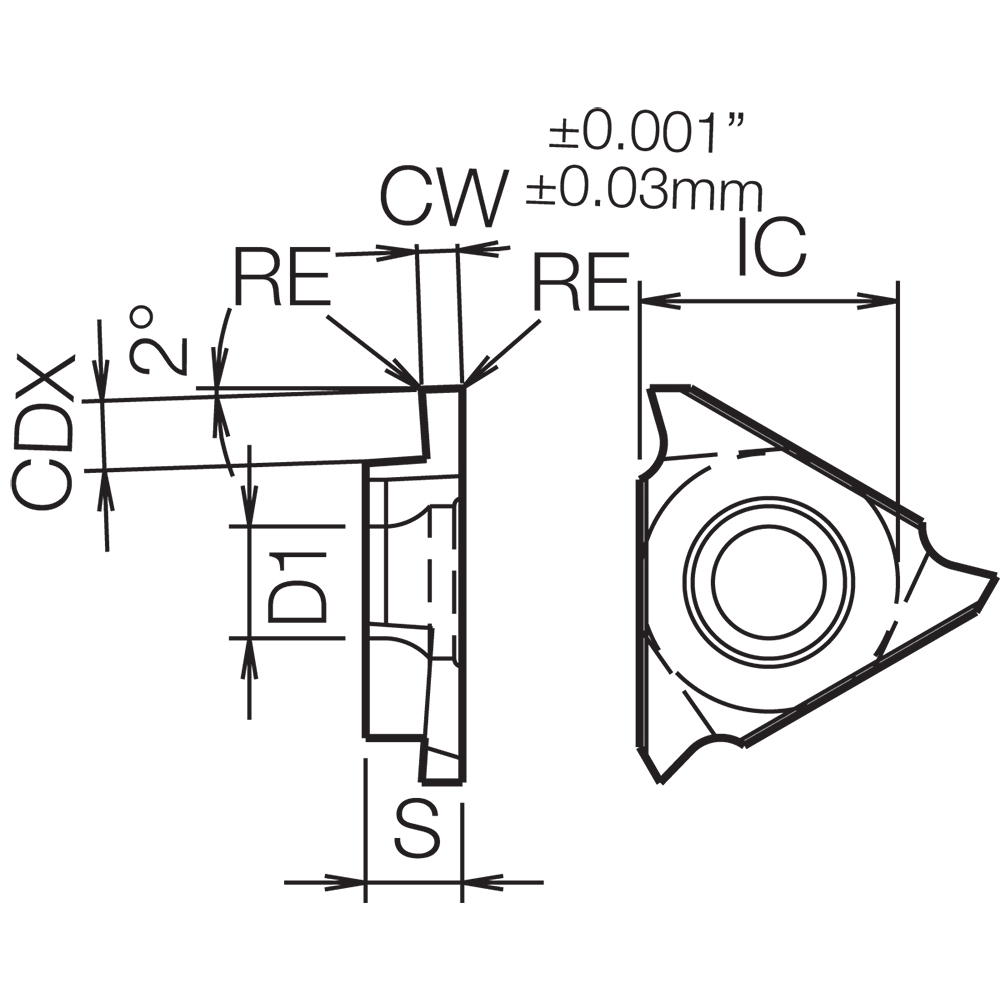

| Cutting Width (CW) | 0.0311″ | Applicable Material | Steel |
| Corner Radius (RE) | 0.008″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.0787″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | N |
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | GBA |
| Fixing Hole Diameter (D1) | 0.2165″ | Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive | Mounting Style | Screw | Clamp |
| Coating | TiC/TiN (MEGACOAT) | Series/List # | GBA |
| Grade | PV7040 | Coating Process | PVD |
| Cutting Edge Material | Cermet | Measurement Type | Inch |
| Application | | Ext. Grooving | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.223
