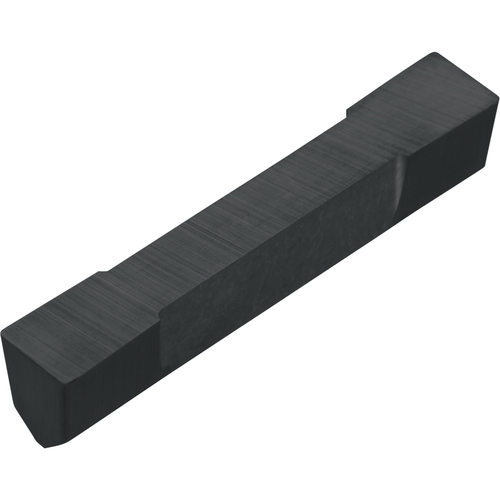

DB 187R30T00420 A65 Grade Uncoated Ceramic, Indexable Grooving Insert
Grooving Insert; 0.1874″ CW × 0.748″ Max Depth × 1/4″ Thickness ; Ceramic ; A65 ; | Al2O3 | TiC | ; Series KDB

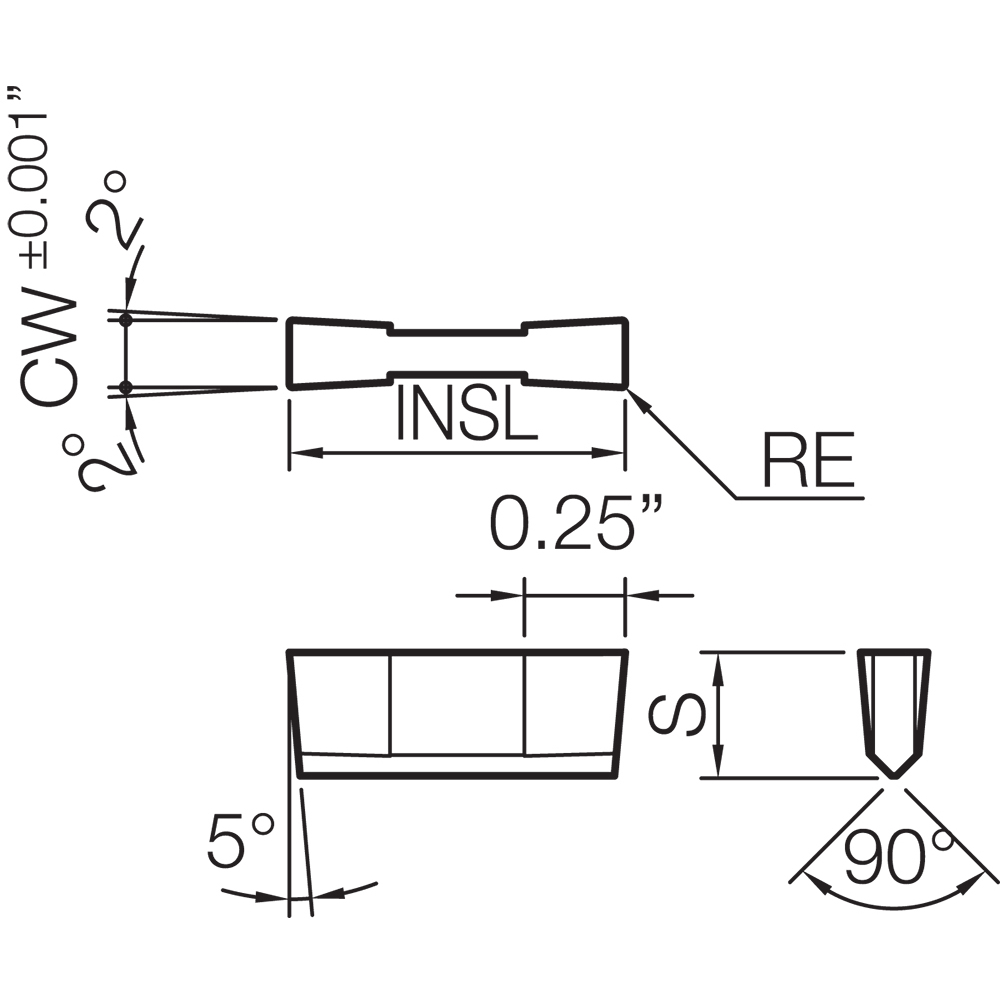

| Cutting Width (CW) | 0.1874″ | Applicable Material | | Cast Iron | Hard Materials | |
| Corner Radius (RE) | 0.03″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.748″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/4″ | Insert Style | DB |
| Insert Length (INSL) | 1.1252″ | Number of Teeth | 2 |
| Coating | | Al2O3 | TiC | | Mounting Style | Clamp |
| Grade | A65 | Series/List # | KDB |
| Cutting Edge Material | Ceramic | Coating Process | Uncoated |
| Application | | Ext. Grooving | | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.183
