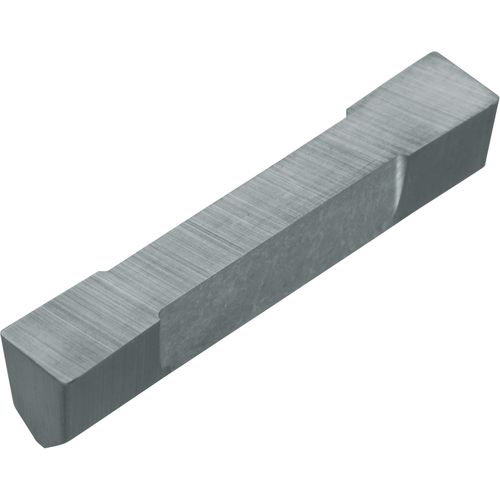

DB 375R30 TN60 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; 0.3752″ CW × 0.748″ Max Depth × 1/4″ Thickness ; Cermet ; TN60 ; | TiCN | NbC | ; Series KDB

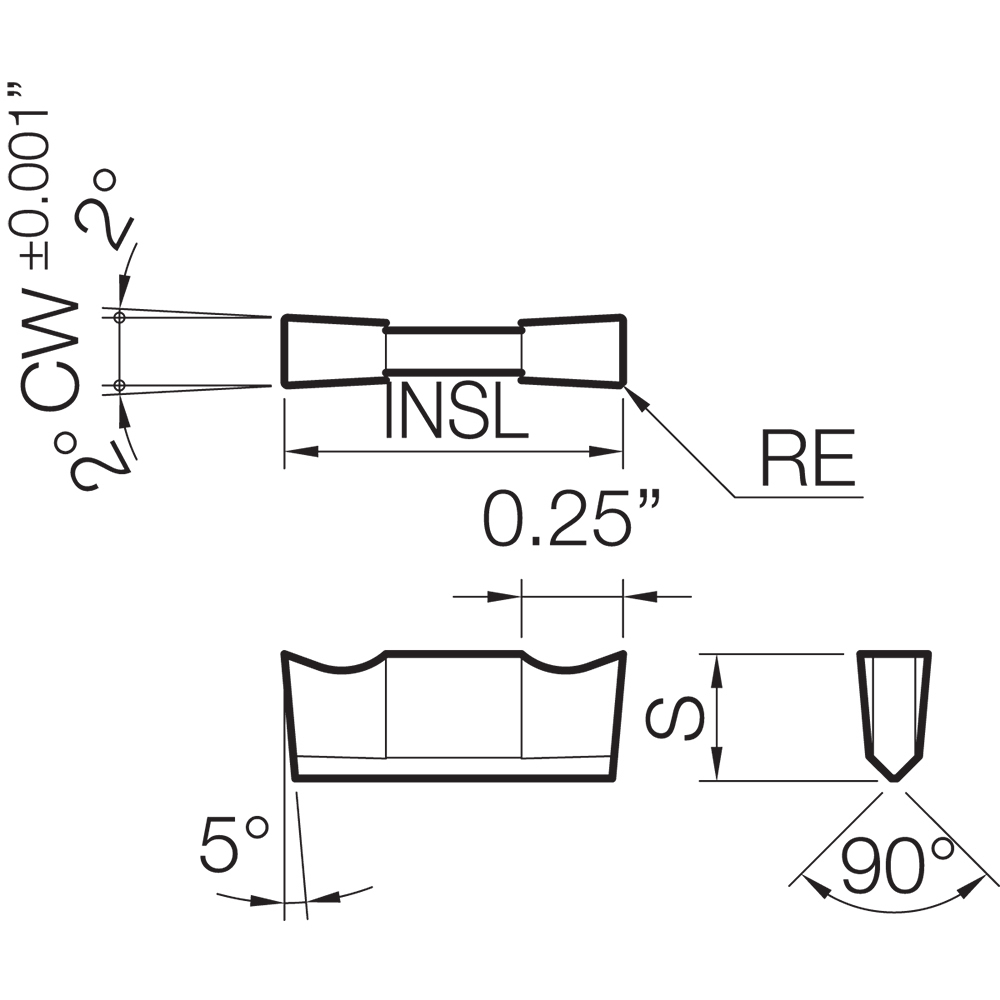

| Cutting Width (CW) | 0.3752″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.03″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.748″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/4″ | Insert Style | DB |
| Insert Length (INSL) | 1.1252″ | Number of Teeth | 2 |
| Coating | | TiCN | NbC | | Mounting Style | Clamp |
| Grade | TN60 | Series/List # | KDB |
| Cutting Edge Material | Cermet | Coating Process | Uncoated |
| Application | | Ext. Grooving | | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.183
