GTBT20030V5L-U VP15TF

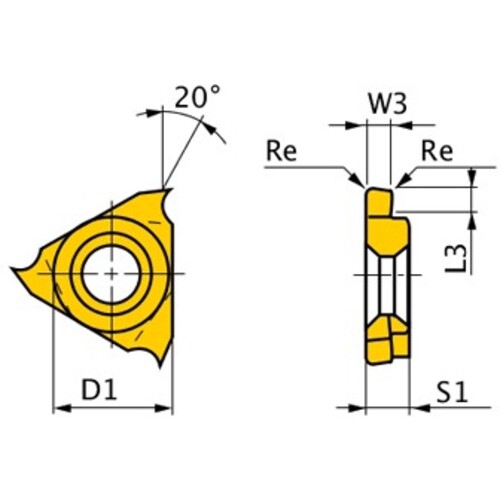

Grooving Insert; 2 mm CW × 3 mm Max Depth × 3.18 mm Thickness × 9.525 mm IC ; Carbide ; VP15TF ; Series VP15TF
| Cutting Width (CW) | 2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.05 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 3 mm | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | U |
| Inscribed Circle Diameter (IC) | 9.525 mm | Series/List # | VP15TF |
| Insert Rake Angle (GAN) | 20 Degrees | Measurement Type | Metric |
| Grade | VP15TF |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
