GBA 32R031R PR1215 INSERT

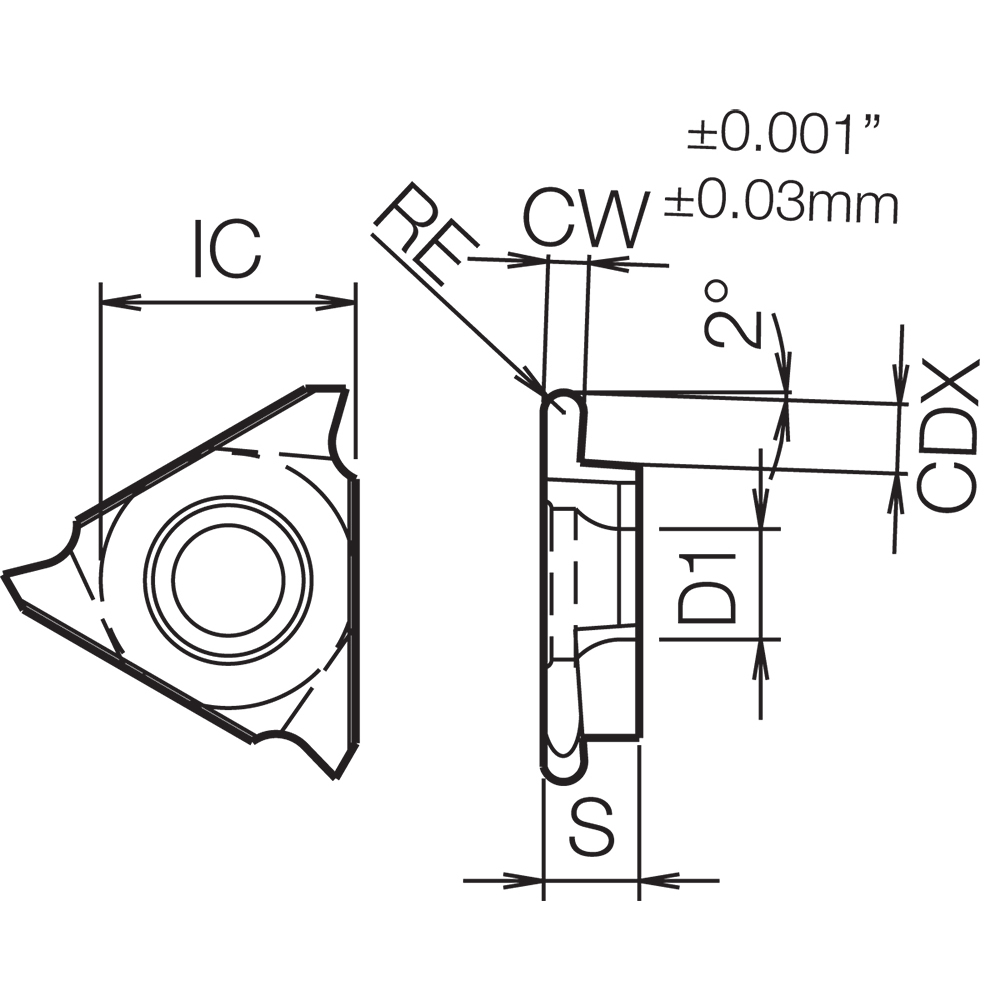

Grooving Insert; 0.0618″ CW × 0.0787″ Max Depth × 1/8″ Thickness × 3/8″ IC ; Carbide ; PR1215 ; MEGACOAT ; Series GBA
| Cutting Width (CW) | 0.0618″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0315″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.0787″ | Chip Breaker Type | R |
| Insert Thickness (S) | 1/8″ | Insert Style | GBA |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Seat Size Code (SSC) | 32 |
| Fixing Hole Diameter (D1) | 0.1732″ | Number of Teeth | 3 |
| Coating | MEGACOAT | Mounting Style | Clamp |
| Grade | PR1215 | Series/List # | GBA |
| Shape | Full-R (Round) | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # GBA32R031RPR1215 | Country of Origin | Japan |
Shipping Info
Package Weight
.1424
