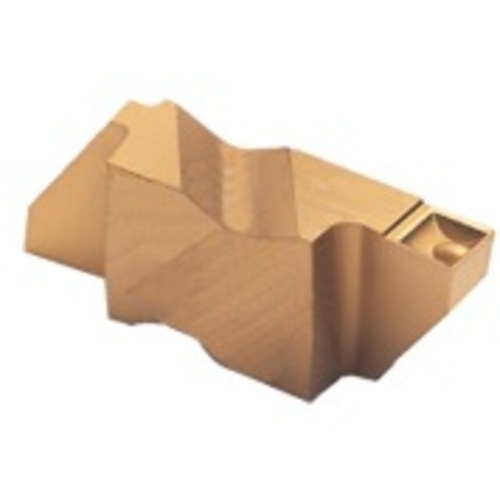

NG 3125R Grade PC5 - Top Lock GrooviNG Insert
Grooving Insert; 1/8″ CW × 0.15″ Max Depth × 0.195″ Thickness ; Carbide ; PC5
| Cutting Width (CW) | 1/8″ | Grade | PC5 |
| Corner Radius (RE) | | 0.005″ | 0.01″ | | Shape | 55° Parallelogram |
| Cutting Depth Maximum (CDX) | 0.15″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.344″ | Applicable Material | | Steel | |
| Insert Thickness (S) | 0.195″ | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •Top Lock Grooving Inserts •PCG/NG Neutral Precision | Country of Origin | USA |
Shipping Info
Package Length
2.23000
Package Width
.28000
Package Height
.28000
Package Weight
0.02
