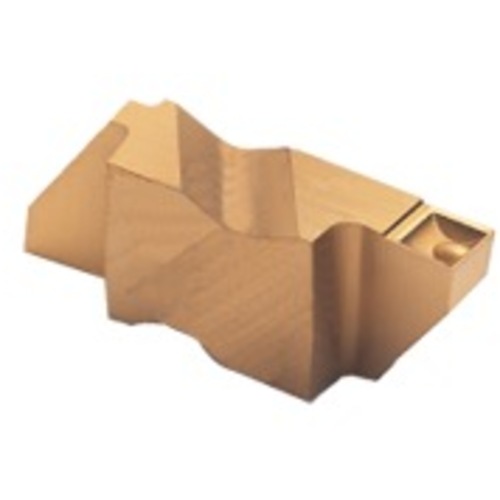

NG 3047R Grade PC300 - Top Lock Grooving Insert
Grooving Insert; 0.047″ CW × 0.075″ Max Depth × 0.195″ Thickness ; Carbide ; PC300
| Cutting Width (CW) | 0.047″ | Grade | PC300 |
| Corner Radius (RE) | | 0.005″ | 0.01″ | | Shape | 55° Parallelogram |
| Cutting Depth Maximum (CDX) | 0.075″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.344″ | Applicable Material | | Steel | |
| Insert Thickness (S) | 0.195″ | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •Top Lock Grooving Inserts •(C5 Coated) TiN-TiC-TiN Steel cutting at higher speeds with greater lubricity | Country of Origin | USA |
Shipping Info
Package Length
.87000
Package Width
.34000
Package Height
.19000
Package Weight
0.025
