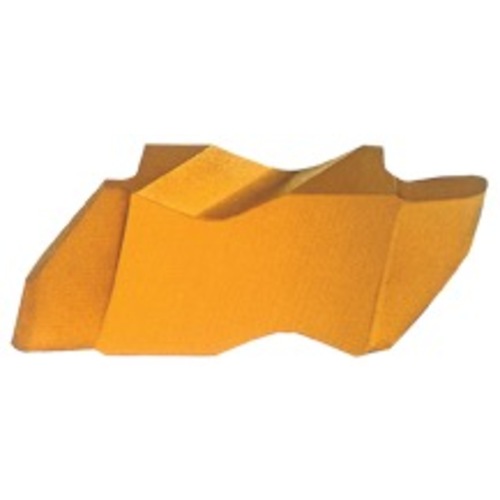

NR 3047L Grade PC300 - Top Lock Grooving Insert
Grooving Insert; 0.094″ CW × 0.15″ Max Depth × 0.195″ Thickness ; Carbide ; PC300
| Cutting Width (CW) | 0.094″ | Grade | PC300 |
| Corner Radius (RE) | 0.047″ | Shape | 55° Parallelogram |
| Cutting Depth Maximum (CDX) | 0.15″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.344″ | Applicable Material | | Steel | |
| Insert Thickness (S) | 0.195″ | Cutting Direction (HAND) | Left Hand |
Product Features
| Remarks | •Top Lock Grooving •PCR/NR Full Radius Neutral Precision | Country of Origin | USA |
Shipping Info
Package Length
.93000
Package Width
.34000
Package Height
.19000
Package Weight
0.025
