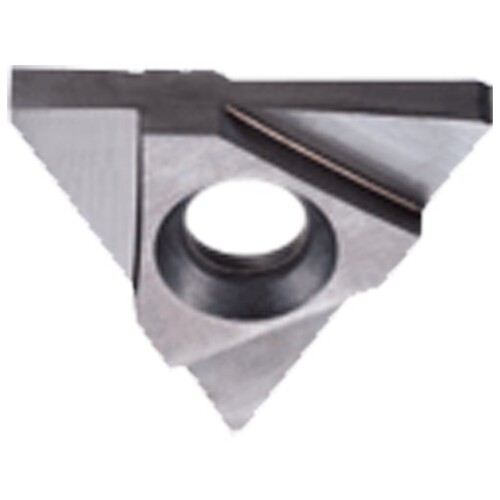

TNMC32NGR063 UTI20T INSERT
Grooving Insert; 1.6 mm CW × 3.962 mm Max Depth × 3.175 mm Thickness × 9.525 mm IC ; Carbide ; UTi20T ; Series UTi20T
| Cutting Width (CW) | 1.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.076 mm | Application | Grooving |
| Cutting Depth Maximum (CDX) | 3.962 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Thickness (S) | 3.175 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.525 mm | Series/List # | UTi20T |
| Grade | UTi20T | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.4000
