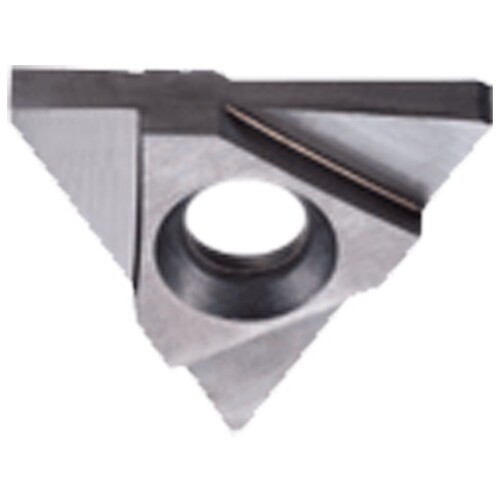

TNMC32NGR032 UP20M INSERT
Grooving Insert; 0.813 mm CW × 1.448 mm Max Depth × 3.175 mm Thickness × 9.525 mm IC ; Carbide ; UP20M ; Series UP20M
| Cutting Width (CW) | 0.813 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.076 mm | Application | Grooving |
| Cutting Depth Maximum (CDX) | 1.448 mm | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 3.175 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.525 mm | Series/List # | UP20M |
| Grade | UP20M | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
