GDM 1516L003PF15D PR1535

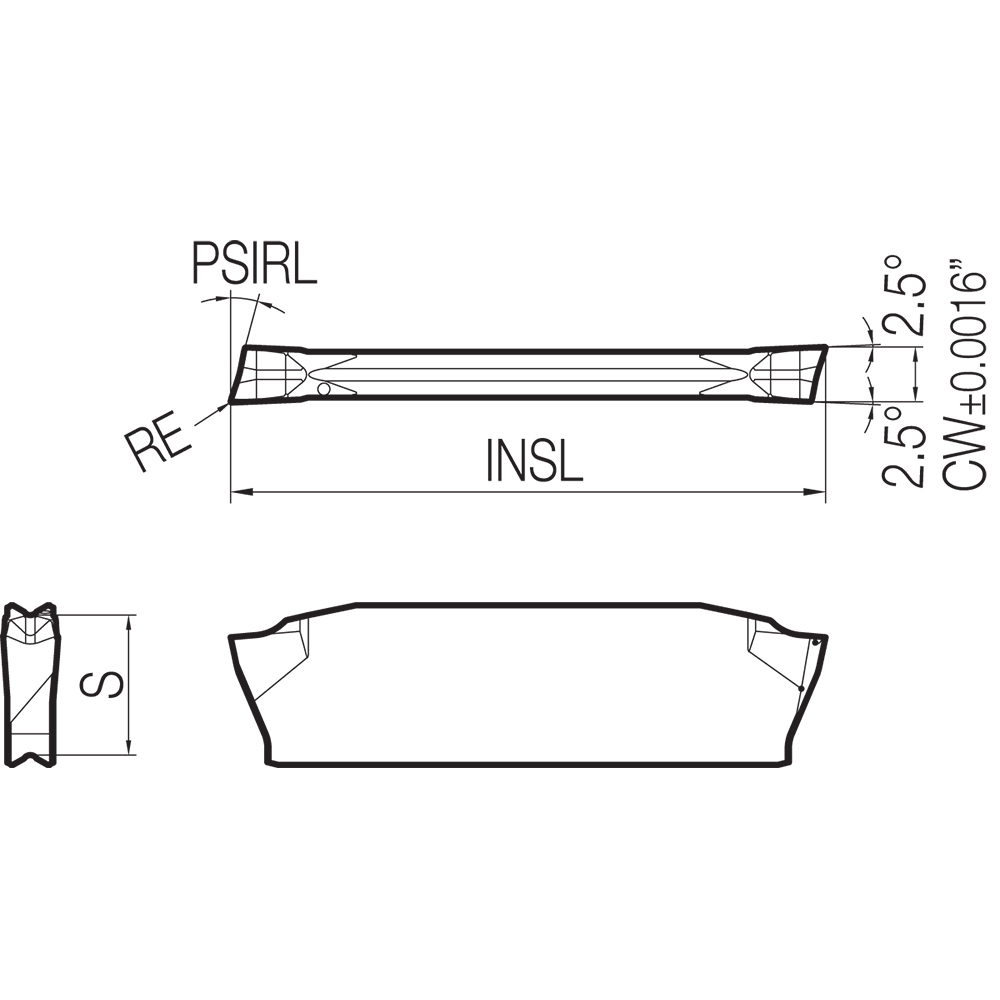

Grooving Insert; 1.5 mm CW × 1.2 mm Thickness ; Carbide ; PR1535 ; MEGACOAT NANO ; Series KGD
| Cutting Width (CW) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.03 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1.2 mm | Chip Breaker Type | PF |
| Insert Rake Angle (GAN) | 15 Degrees | Overall Length (OAL) | 16 mm |
| Coating | MEGACOAT NANO | Insert Style | GDM |
| Grade | PR1535 | Insert Seat Size Code (SSC) | 1516 |
| Cutting Edge Material | Carbide | Series/List # | KGD |
| Application | Cut-Off for Small Parts Machining | Coating Process | PVD |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Tool Type | 15 Degree Lead Angle / Low Feed / 2-edge |
Product Features
| Family Description | Alternate Manufacture # GDM1516L003PF15DPR1535 | Country of Origin | Japan |
Shipping Info
Package Weight
.0558
