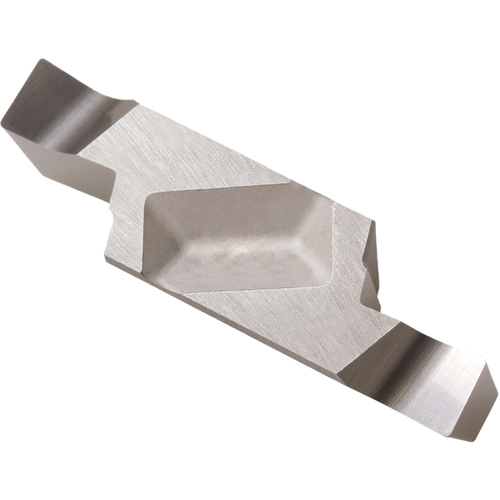

GVF L350B KW10 INSERT

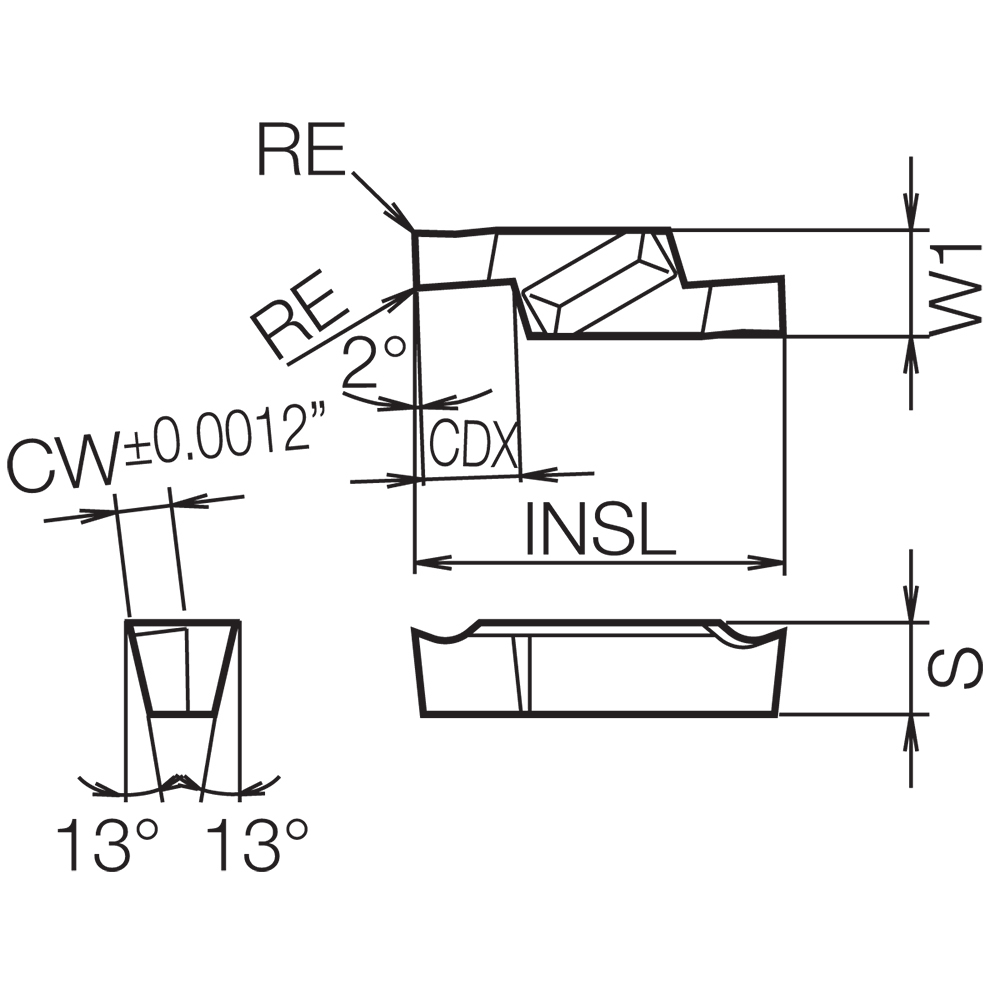

| Cutting Width (CW) | 3.5 mm | Chip Breaker Type | B |
| Corner Radius (RE) | 0.2 mm | Overall Length (OAL) | 20 mm |
| Cutting Depth Maximum (CDX) | 4.8 mm | Insert Style | GVF |
| Insert Thickness (S) | 5.8 mm | Insert Seat Size Code (SSC) | 350 |
| Coating | Uncoated | Number of Teeth | 2 |
| Grade | KW10 | Mounting Style | Clamp |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Alternate Manufacture # GVFL350BKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1539
