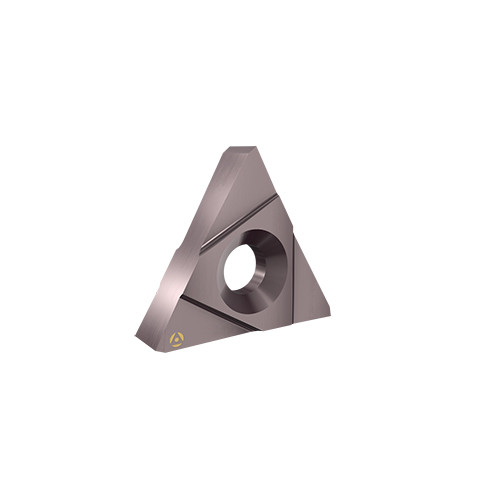

TNMC 32 NGR W.062 AC50C AC50
Grooving Insert; 0.062″ CW × 0.15″ Max Depth × 0.127″ Thickness × 3/8″ IC ; Carbide ; AC50 ; TiAlN
| Cutting Width (CW) | 0.062″ | Shape | Triangle |
| Cutting Depth Maximum (CDX) | 0.15″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.127″ | Application | | Int Ext Grooving On Edge | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC50 | Body Material | Carbide |
Product Features
| Family Description | Internal and External 0.375″ IC FloEdge TNMC Style Grooving Inserts with Right Hand Offset Form | Country of Origin | USA |
Shipping Info
Package Weight
0.12
