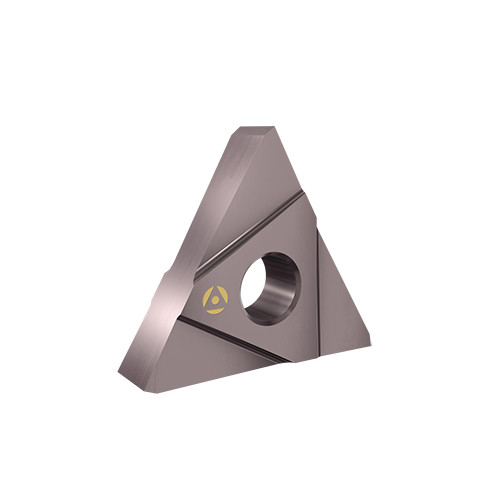

TNMA 43 NGR W.094 GP50C GP50
Grooving Insert; 0.094″ CW × 0.215″ Max Depth × 0.189″ Thickness × 1/2″ IC ; Carbide ; GP50 ; TiN
| Cutting Width (CW) | 0.094″ | Shape | Triangle |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.215″ | Application | | Int Ext Grooving On Edge | |
| Insert Thickness (S) | 0.189″ | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Fixing Hole Diameter (D1) | 0.203″ | Measurement Type | Inch |
| Coating | TiN | Threads per Inch (TPI) | 0 |
| Grade | GP50 | Body Material | Carbide |
Product Features
| Family Description | Internal and External IC FloEdge TNMA Style Grooving Insertswith Right Hand Offset Form | Country of Origin | USA |
Shipping Info
Package Weight
0.001
