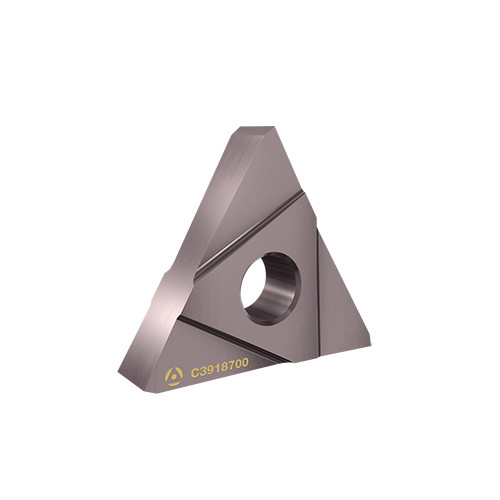

TNMA 32 NGC W.125 AC3R AC3
Grooving Insert; 1/8″ CW × 0.15″ Max Depth × 0.127″ Thickness × 3/8″ IC ; Carbide ; AC3 ; TiAlN
| Cutting Width (CW) | 1/8″ | Shape | Triangle |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.15″ | Application | | Int Ext Grooving On Edge | |
| Insert Thickness (S) | 0.127″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Fixing Hole Diameter (D1) | 0.15″ | Measurement Type | Inch |
| Coating | TiAlN | Threads per Inch (TPI) | 0 |
| Grade | AC3 | Body Material | Carbide |
Product Features
| Family Description | Internal and External IC FloEdge TNMA Style Grooving Insertswith Centered Form | Country of Origin | USA |
