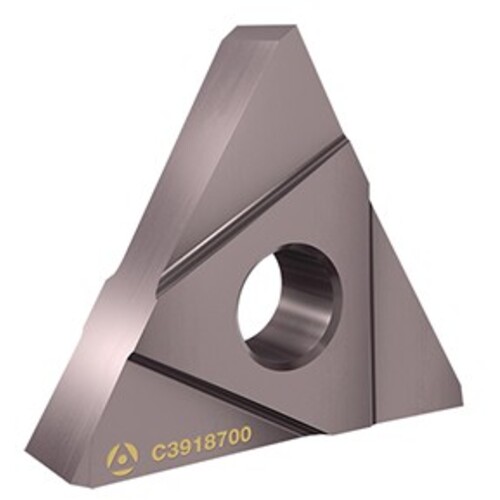

TNMA 32 NGC W.062 GP50C
Grooving Insert; 0.062″ CW × 0.15″ Max Depth × 0.127″ Thickness × 3/8″ IC ; Carbide ; GP50C ; TiN
| Cutting Width (CW) | 0.062″ | Shape | Triangle |
| Cutting Depth Maximum (CDX) | 0.15″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.127″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch (TPI) | 8 |
| Coating | TiN | Cutting Edge Length (L) | 0.401″ |
| Grade | GP50C | Height | 0.344″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.12
