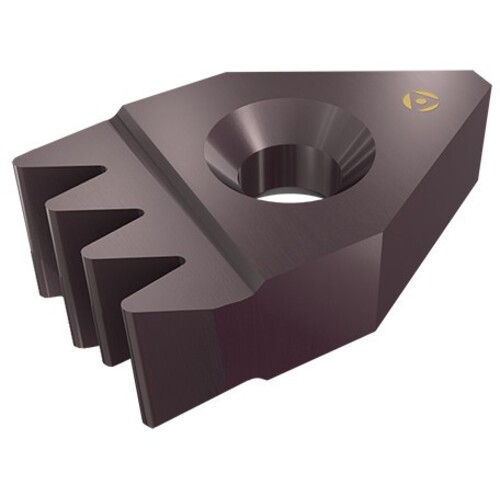

PV-6140-6E AC3R
Grooving Insert; 0.156″ CW × 0.195″ Max Depth × 1/4″ Thickness × 3/4″ IC ; Carbide ; AC3R ; AlTiN
| Cutting Width (CW) | 0.156″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.016″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Number of Teeth | 6 |
| Insert Thickness (S) | 1/4″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/4″ | Threads per Inch (TPI) | 8 |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Length (L) | 0.401″ |
| Coating | AlTiN | Height | 0.203″ |
| Grade | AC3R | Insert Width (W1) | 0.14″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.38
