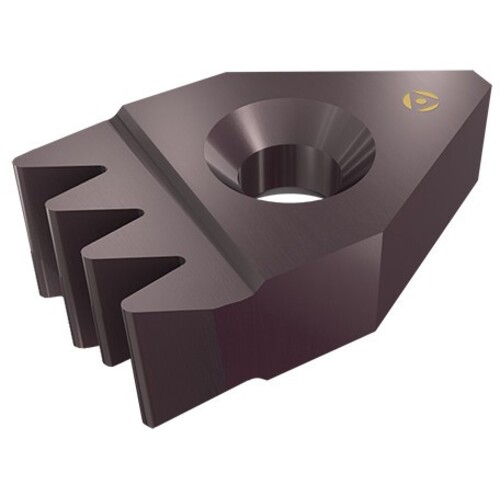

PV-5140-4E GP6C
Grooving Insert; 0.094″ CW × 0.195″ Max Depth × 0.252″ Thickness × 5/8″ IC ; Carbide ; GP6C ; TiN
| Cutting Width (CW) | 0.094″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.016″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Number of Teeth | 4 |
| Insert Thickness (S) | 0.252″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 5/8″ | Threads per Inch (TPI) | 8 |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Length (L) | 0.401″ |
| Coating | TiN | Height | 0.203″ |
| Grade | GP6C | Insert Width (W1) | 0.14″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.22
