GBA 32L050005 KW10 INSERT

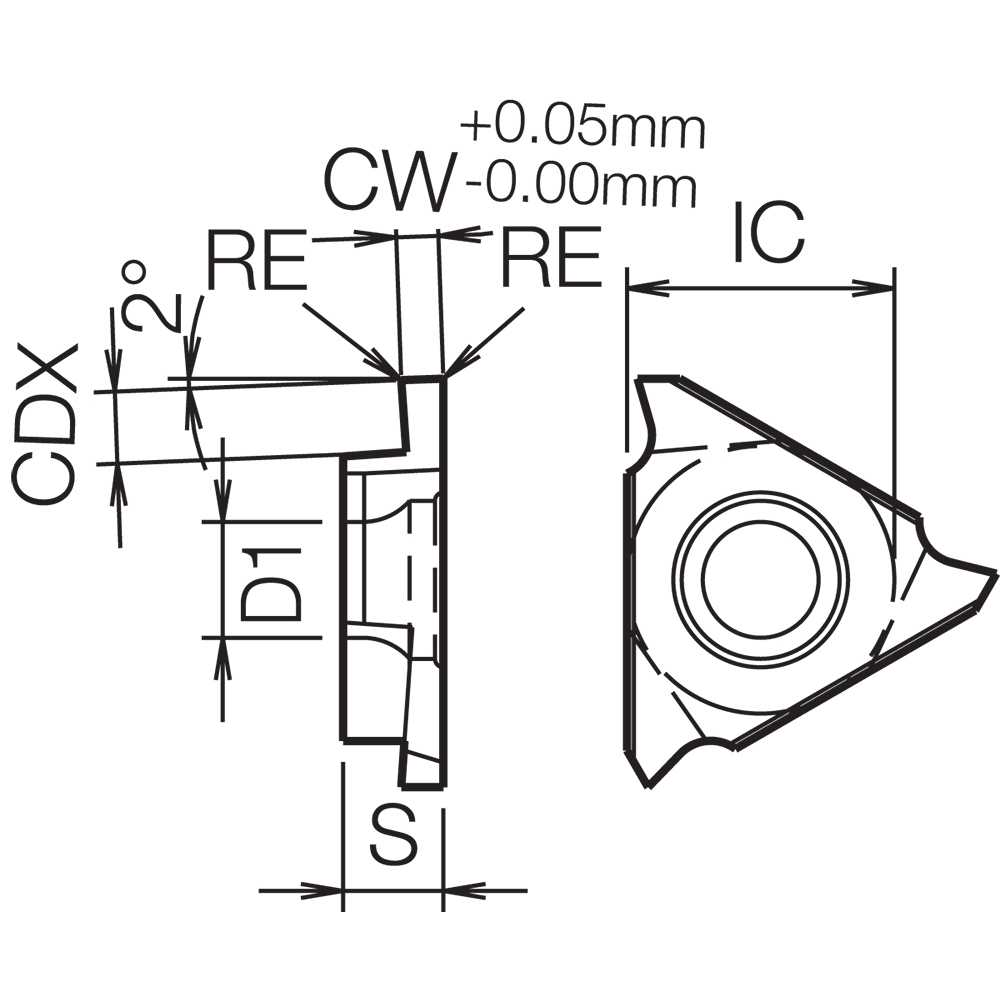

| Cutting Width (CW) | 0.5 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.05 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 1 mm | Insert Style | GBA |
| Insert Thickness (S) | 3.18 mm | Insert Seat Size Code (SSC) | 32 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 4.4 mm | Mounting Style | Clamp |
| Coating | Uncoated | Series/List # | GBA |
| Grade | KW10 | Coating Process | Uncoated |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
Product Features
| Family Description | Alternate Manufacture # GBA32L050005KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1433
