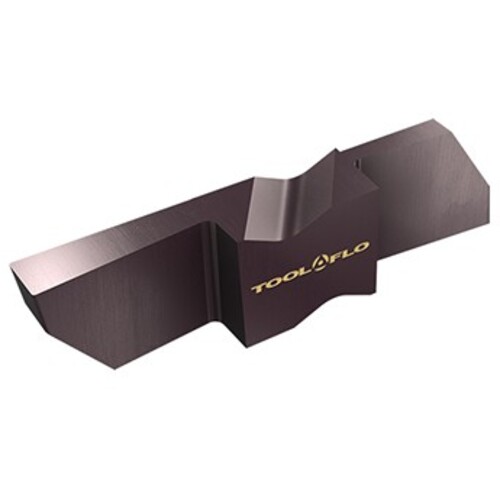

FLGT-4250RG GP3A
Grooving Insert; 1/4″ CW × 0.55″ Max Depth × 0.255″ Thickness ; Carbide ; GP3A ; TiN
| Cutting Width (CW) | 1/4″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.02″ | 0.025″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.55″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.255″ | Threads per Inch (TPI) | 8 |
| Coating | TiN | Cutting Edge Length (L) | 1.136″ |
| Grade | GP3A | Height | 0.453″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.38
