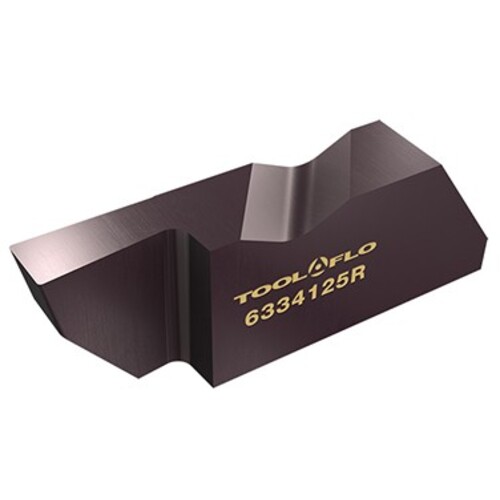

FLGD-4125RG AC3R
Grooving Insert; 1/8″ CW × 3/8″ Max Depth × 0.255″ Thickness ; Carbide ; AC3R ; AlTiN
| Cutting Width (CW) | 1/8″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.005″ | 0.01″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.255″ | Threads per Inch (TPI) | 8 |
| Coating | AlTiN | Cutting Edge Length (L) | 0.761″ |
| Grade | AC3R | Height | 0.453″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.38
