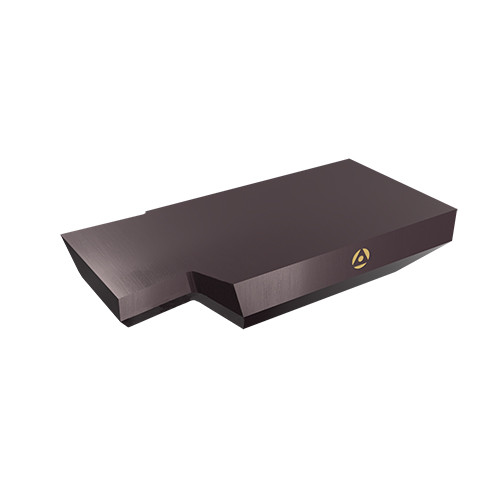

MLPE 1251 NGL W.125 AC22R
Grooving Insert; 1/8″ CW × 0.085″ Max Depth × 0.16″ Thickness ; Carbide ; AC22R ; TiAlN
| Cutting Width (CW) | 1/8″ | Application | | Int Grooving Vee Bottom | |
| Cutting Depth Maximum (CDX) | 0.085″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.16″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.34″ | Profile Included Angle (PNA) | 90 Degrees |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC22R | Body Material | Carbide |
| Cutting Edge Material | Carbide | Height | 0.115″ |
Product Features
| Family Description | Internal Grooving MLPE 1251 Style FloVee Inserts with Left Hand Offset Form | Country of Origin | USA |
