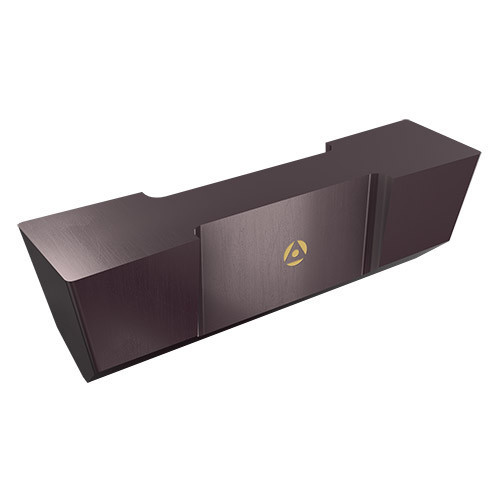

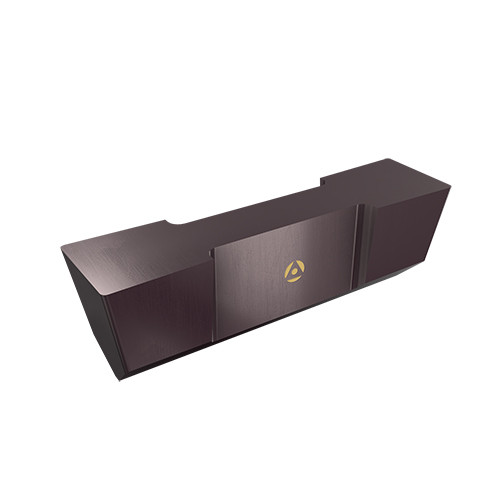

GC 4187 AC25R
Grooving Insert; 0.187″ CW × 0.144″ Thickness ; Carbide ; AC25R ; TiAlN

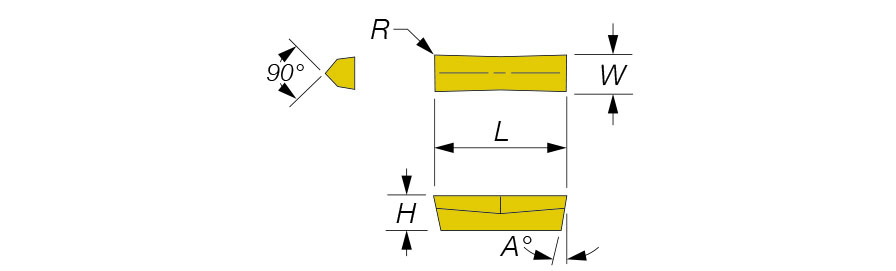

| Cutting Width (CW) | 0.187″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0125″ | Application | | Ext Deep Grooving Vee Bottom | |
| Clearance Angle Major (AN) | 5 Degrees | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.144″ | Profile Included Angle (PNA) | 90 Degrees |
| Insert Length (INSL) | 1″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 0 Degrees | Min. Grooving Feed (fg(min)) | 0 ″/rev |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AC25R | Height | 0.328″ |
Product Features
| Family Description | External Deep Grooving FloVee GC Style Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.001
