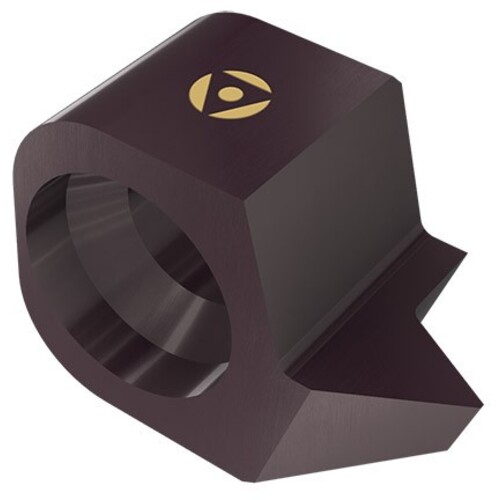

BNVR-60 C22
Grooving Insert; 0.094″ CW × 0.095″ Max Depth × 0.137″ Thickness ; Carbide ; C22 ; Uncoated
| Cutting Width (CW) | 0.094″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.095″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.137″ | Threads per Inch (TPI) | 18 |
| Coating | Uncoated | Insert to Shank Reference | 0.095″ |
| Grade | C22 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.04
