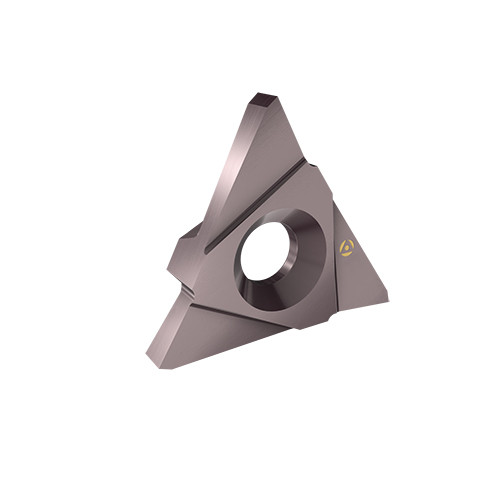

TPMC 43 NGR W.125 GP50C GP50
Grooving Insert; 1/8″ CW × 0.215″ Max Depth × 0.189″ Thickness × 1/2″ IC ; Carbide ; GP50 ; TiN
| Cutting Width (CW) | 1/8″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.215″ | Application | | Int Ext Grooving On Edge | |
| Insert Thickness (S) | 0.189″ | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Fixing Hole Diameter (D1) | 0.203″ | Chip Breaker Type | PR |
| Coating | TiN | Measurement Type | Inch |
| Grade | GP50 | Body Material | Carbide |
| Shape | Triangle |
Product Features
| Family Description | Internal and External 0.500″ IC FloEdge TPMC Style Grooving Inserts with Positive Rake and Right Hand Offset Form | Country of Origin | USA |
Shipping Info
Package Weight
0.001
