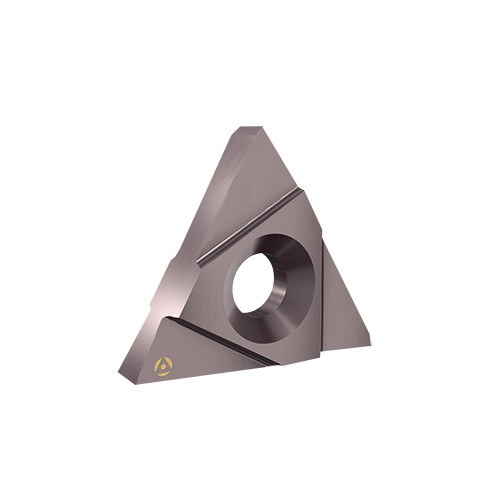

TNMC 54 NGL W.187 GP50C GP50
Grooving Insert; 0.187″ CW × 0.215″ Max Depth × 0.252″ Thickness × 5/8″ IC ; Carbide ; GP50 ; TiN
| Cutting Width (CW) | 0.187″ | Shape | Triangle |
| Cutting Depth Maximum (CDX) | 0.215″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.252″ | Application | | Int Ext Grooving On Edge | |
| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | |
| Fixing Hole Diameter (D1) | 0.253″ | Cutting Direction (HAND) | Left Hand |
| Coating | TiN | Measurement Type | Inch |
| Grade | GP50 | Body Material | Carbide |
Product Features
| Family Description | Internal and External 0.625″ IC FloEdge TNMC Style Grooving Inserts with Left Hand Offset Form | Country of Origin | USA |
