VDG-375-B031-CB GP50E

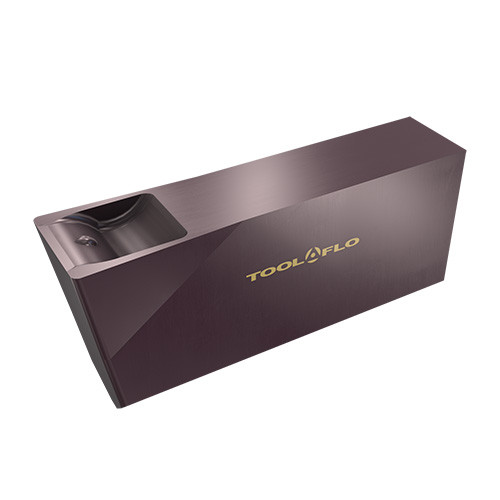

Grooving Insert; 3/8″ CW × 0.276″ Thickness ; Carbide ; GP50E ; TiN
| Cutting Width (CW) | 3/8″ | Application | | Int Ext Deep Grooving Vee Bott | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.276″ | Profile Included Angle (PNA) | 90 Degrees |
| Insert Length (INSL) | 1/2″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 0 Degrees | Min. Grooving Feed (fg(min)) | 0.003 ″/rev |
| Coating | TiN | Body Material | Carbide |
| Grade | GP50E | Height | 0.337″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | External FloVee VDG Style Single-Ended Deep Grooving Insertswith Chip Control | Country of Origin | USA |
Shipping Info
Package Weight
0.001
