VDB 375 B015C GP50E

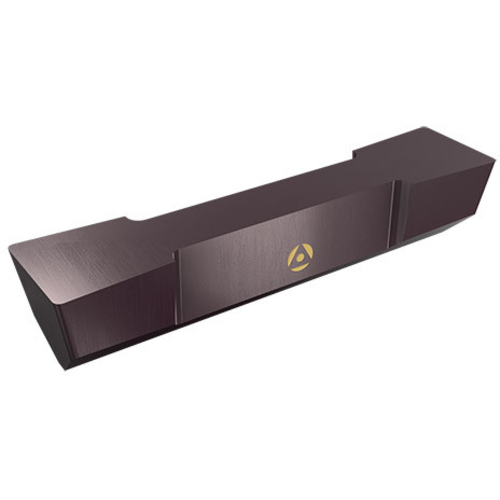

Grooving Insert; 3/8″ CW × 0.195″ Max Depth × 3/8″ Thickness ; Carbide ; GP50E ; TiN
| Cutting Width (CW) | 3/8″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.015″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 3/8″ | Threads per Inch (TPI) | 8 |
| Insert Length (INSL) | 1-1/8″ | Cutting Edge Length (L) | 0.401″ |
| Coating | TiN | Height | 0.337″ |
| Grade | GP50E |
Product Features
| Family Description | Internal and External Grooving VDB Vee Bottom Style Inserts | Country of Origin | United States |
Shipping Info
Package Weight
0.28
