PV-6185-4E-S C3

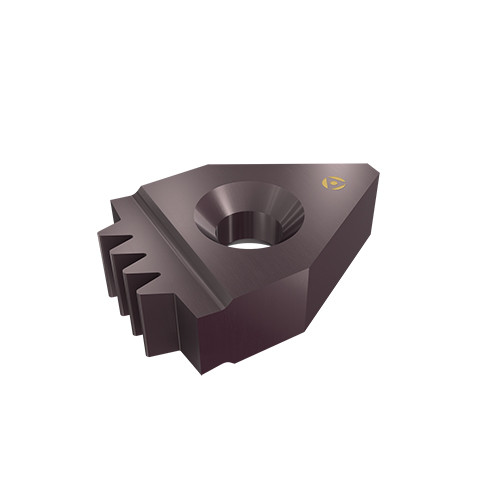

Grooving Insert; 1/8″ CW × 1/4″ Thickness × 3/4″ IC ; Carbide ; C3 ; Uncoated
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Grooving | |
| Corner Radius (RE) | 0.013″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 1/4″ | Number of Teeth | 4 |
| Inscribed Circle Diameter (IC) | 3/4″ | Thread Pitch (TP) | 0.185 mm |
| Fixing Hole Diameter (D1) | 0.203″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | C3 | Height | 0.203″ |
| Cutting Edge Material | Carbide | Insert Width (W1) | 0.185″ |
Product Features
| Family Description | Multi-Tooth Poly-V #6 Gage Grooving Inserts with Oustide Soulders | Country of Origin | USA |
Shipping Info
Package Weight
0.001
