MGTR43430 NX2525 INSERT

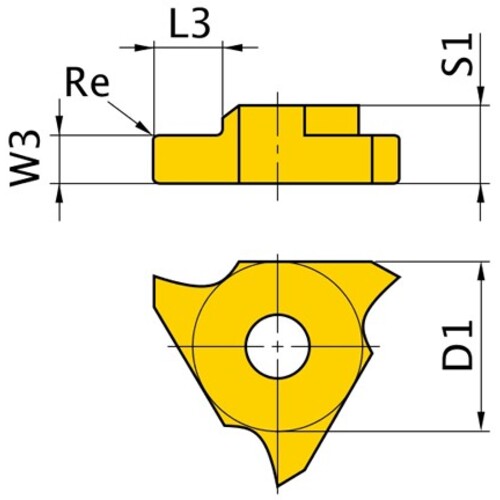

Grooving Insert; 4.3 mm CW × 4.5 mm Max Depth × 4.76 mm Thickness × 12.7 mm IC ; Cermet ; NX2525 ; Series NX2525
| Cutting Width (CW) | 4.3 mm | Grade | NX2525 |
| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Cermet |
| Cutting Depth Maximum (CDX) | 4.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm | Series/List # | NX2525 |
| Fixing Hole Diameter (D1) | 5.16 mm | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.1000
