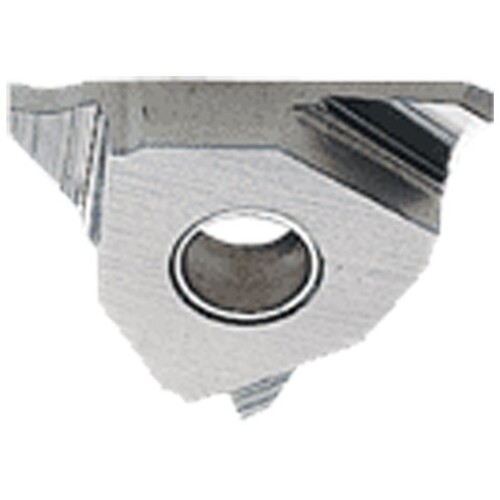

MGTL43150 UTI20T INSERT
Grooving Insert; 1.5 mm CW × 3 mm Max Depth × 4.76 mm Thickness × 12.7 mm IC ; Carbide ; UTi20T ; Series UTi20T
| Cutting Width (CW) | 1.5 mm | Grade | UTi20T |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm | Series/List # | UTi20T |
| Fixing Hole Diameter (D1) | 5.16 mm | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.1000
