GBA 43R150010 KPD010

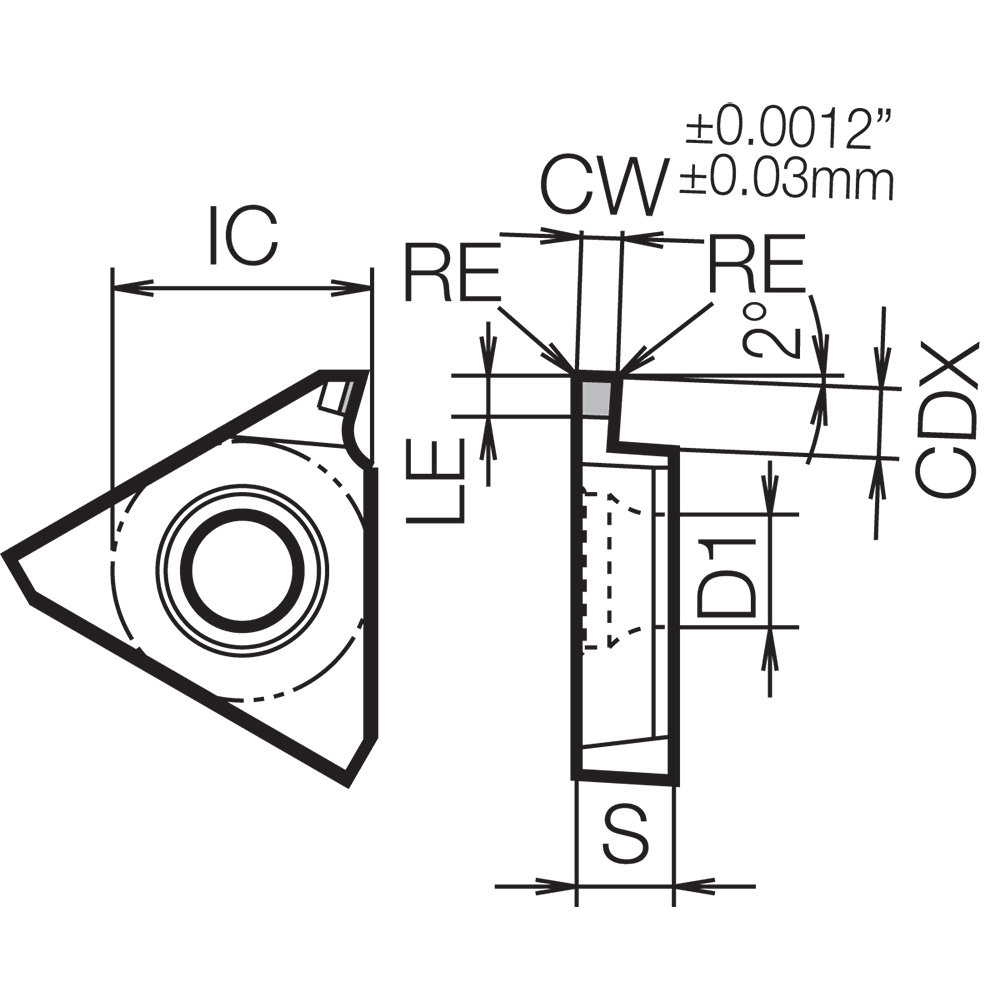

| Cutting Width (CW) | 1.5 mm | Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 3.5 mm | Insert Style | GBA |
| Insert Thickness (S) | 4.76 mm | Insert Seat Size Code (SSC) | 43 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Number of Teeth | 1 |
| Fixing Hole Diameter (D1) | 5.5 mm | Mounting Style | Clamp |
| Grade | KPD010 | Series/List # | GBA |
| Shape | 1-edge | Measurement Type | Metric |
| Cutting Edge Material | PCD |
Product Features
| Family Description | Alternate Manufacture # GBA43R150010KPD010 | Country of Origin | Japan |
Shipping Info
Package Weight
.0443
