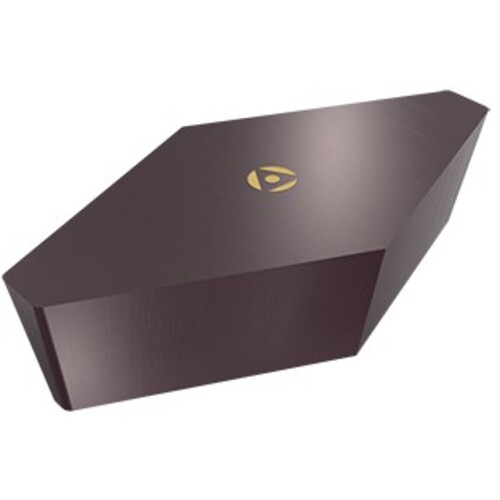

APIP 213-3 GP6D
Grooving Insert; 0.206″ CW × 0.203″ Max Depth × 0.187″ Thickness ; Carbide ; GP6D ; TiN
| Cutting Width (CW) | 0.206″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.062″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.203″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Mounting Style | Lock Pin |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Insert Length (INSL) | 1″ | Threads per Inch (TPI) | 8 |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Length (L) | 0.401″ |
| Coating | TiN | Height | 0.344″ |
| Grade | GP6D | Insert Width (W1) | 0.574″ |
Product Features
| Country of Origin | United States |
Shipping Info
Package Weight
0.34
