VDB 125 A015 AC50C

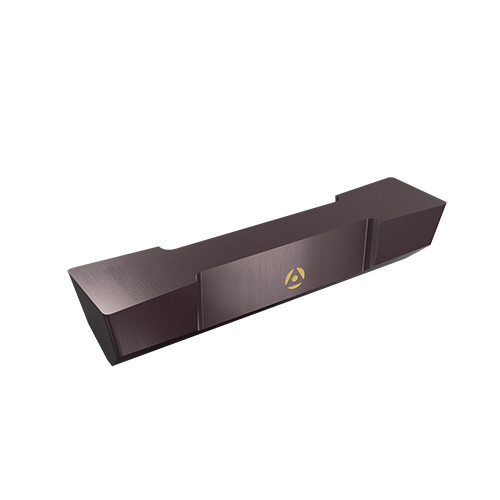

Grooving Insert; 1/8″ CW × 0.106″ Thickness ; Carbide ; AC50C ; TiAlN
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Grooving Vee Bottom | |
| Corner Radius (RE) | 0.015″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.106″ | Profile Included Angle (PNA) | 90 Degrees |
| Insert Length (INSL) | 1-1/8″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 0 Degrees | Min. Grooving Feed (fg(min)) | 0 ″/rev |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AC50C | Height | 1/4″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External FloVee VDB Style Grooving Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.000
