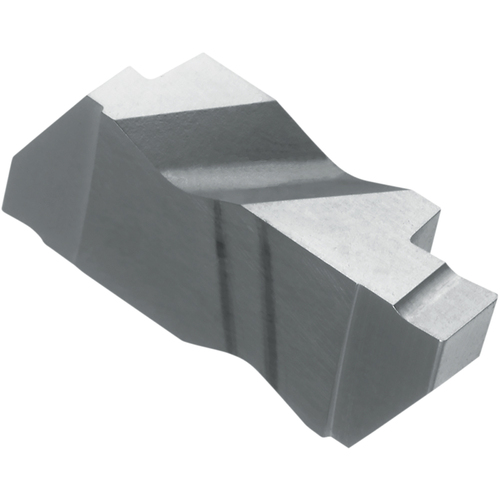

KCGP 3125L KW10 INSERT
Grooving Insert; 1/8″ CW × 0.1496″ Max Depth × 0.195″ Thickness ; Carbide ; KW10 ; Uncoated ; Series Cera-Notch
| Cutting Width (CW) | 1/8″ | Overall Length (OAL) | 0.8098″ |
| Corner Radius (RE) | 0.0079″ | Insert Style | KCGP |
| Cutting Depth Maximum (CDX) | 0.1496″ | Insert Seat Size Code (SSC) | 3125 |
| Insert Thickness (S) | 0.195″ | Number of Teeth | 2 |
| Coating | Uncoated | Mounting Style | Clamp |
| Grade | KW10 | Series/List # | Cera-Notch |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Alternate Manufacture # KCGP3125LKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.2500
