KCG 2125L A65 INSERT

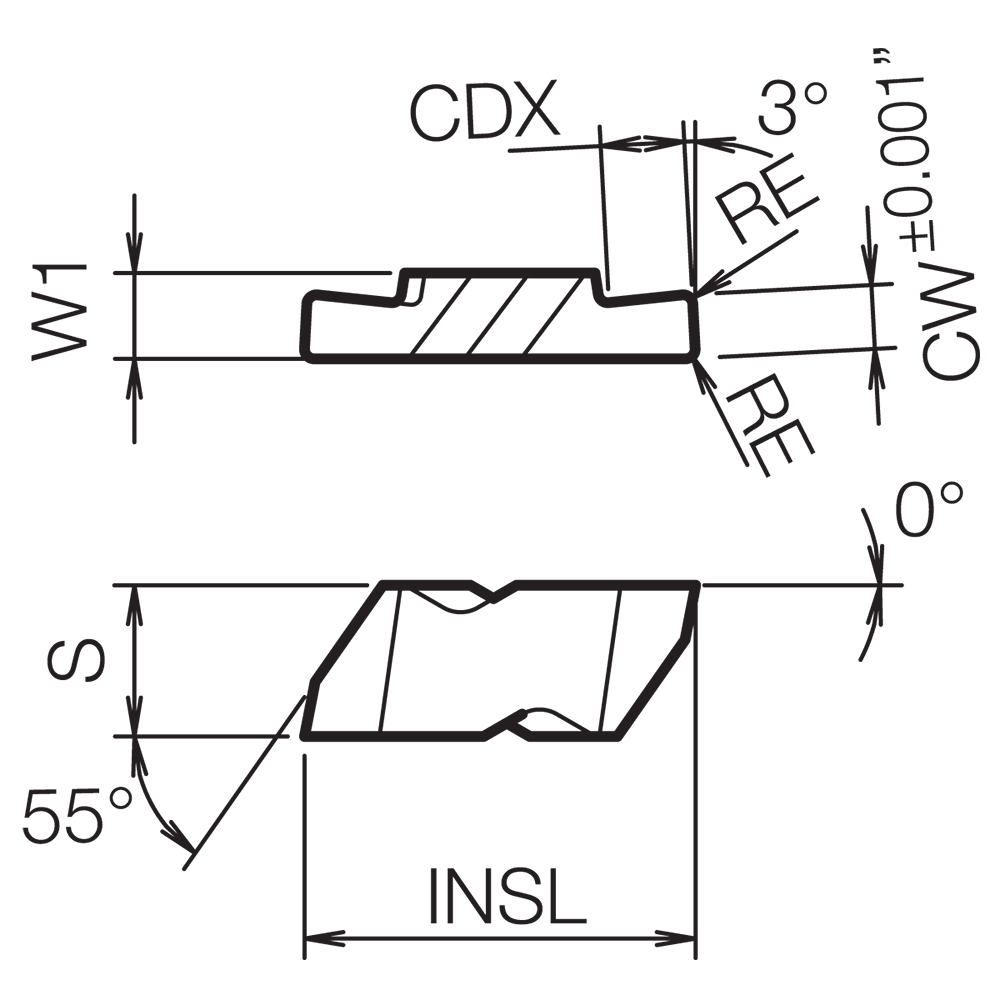

Grooving Insert; 1/8″ CW × 0.1102″ Max Depth × 0.1496″ Thickness ; Ceramic ; A65 ; | Al2O3 | TiC | ; Series Cera-Notch
| Cutting Width (CW) | 1/8″ | Overall Length (OAL) | 0.5402″ |
| Corner Radius (RE) | 0.0079″ | Insert Style | KCG |
| Cutting Depth Maximum (CDX) | 0.1102″ | Insert Seat Size Code (SSC) | 2125 |
| Insert Thickness (S) | 0.1496″ | Number of Teeth | 2 |
| Coating | | Al2O3 | TiC | | Mounting Style | Clamp |
| Grade | A65 | Series/List # | Cera-Notch |
| Cutting Edge Material | Ceramic | Coating Process | Uncoated |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Alternate Manufacture # KCG2125LA65 | Country of Origin | Japan |
Shipping Info
Package Weight
0.25
