GBA 43R125020F TN620

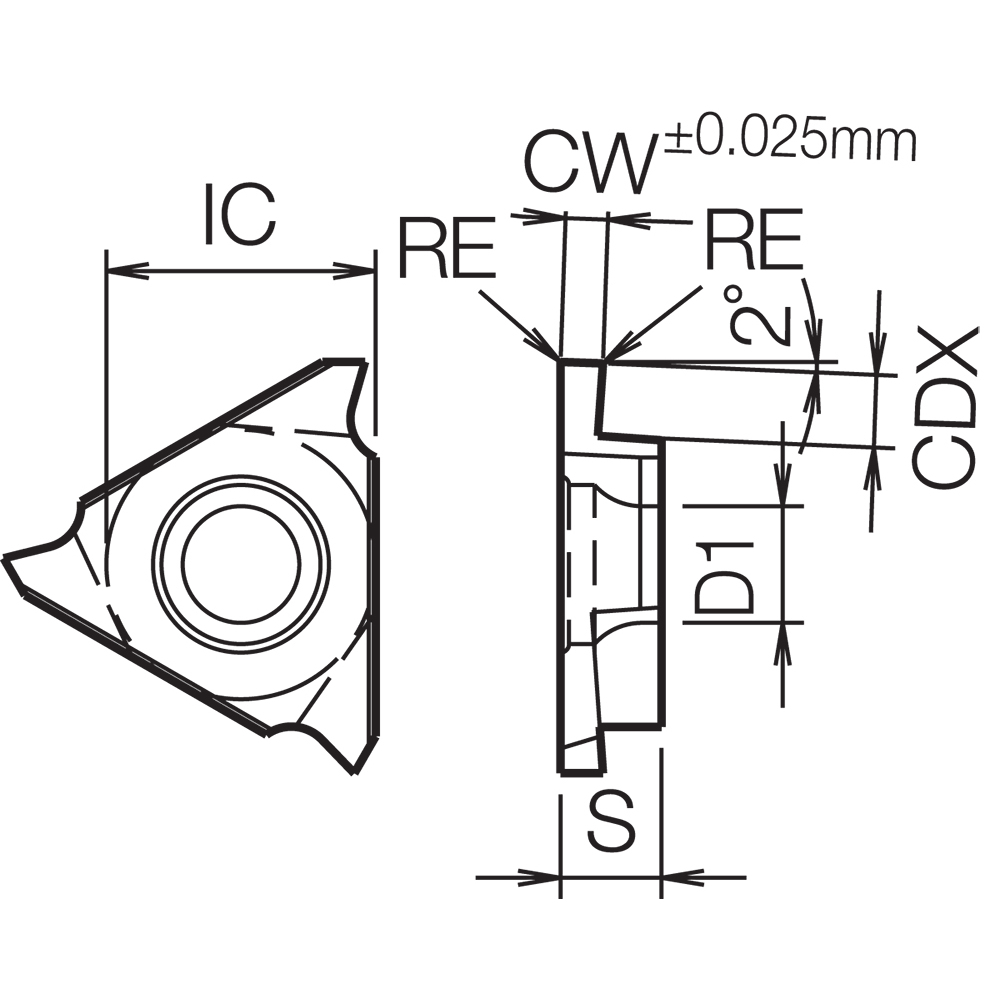

| Cutting Width (CW) | 1.25 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.2 mm | Chip Breaker Type | F |
| Cutting Depth Maximum (CDX) | 2 mm | Insert Style | GBA |
| Insert Thickness (S) | 4.76 mm | Insert Seat Size Code (SSC) | 43 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 5.5 mm | Mounting Style | Clamp |
| Coating | TiCN | Series/List # | GBA |
| Grade | TN620 | Coating Process | Uncoated |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Applicable Material | | Steel | |
Product Features
| Family Description | Alternate Manufacture # GBA43R125020FTN620 | Country of Origin | Japan |
Shipping Info
Package Weight
.1195
