FLR-3078R GP3R GP3

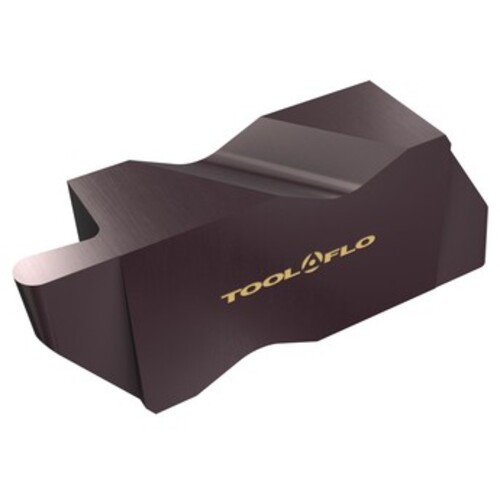

Grooving Insert; 0.16 mm CW × 0.18 mm Max Depth × 0.2 mm Thickness ; Carbide ; GP3 TiN ; AlTiN
| Cutting Width (CW) | 0.16 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.08 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.18 mm | Measurement Type | Metric |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Insert Thickness (S) | 0.2 mm | Body Material | Carbide |
| Coating | AlTiN | Cutting Edge Length (L) | 0.4 mm |
| Grade | GP3 TiN | Height | 0.34 mm |
| Shape | Parrallelogram |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.22
